Product Introduction

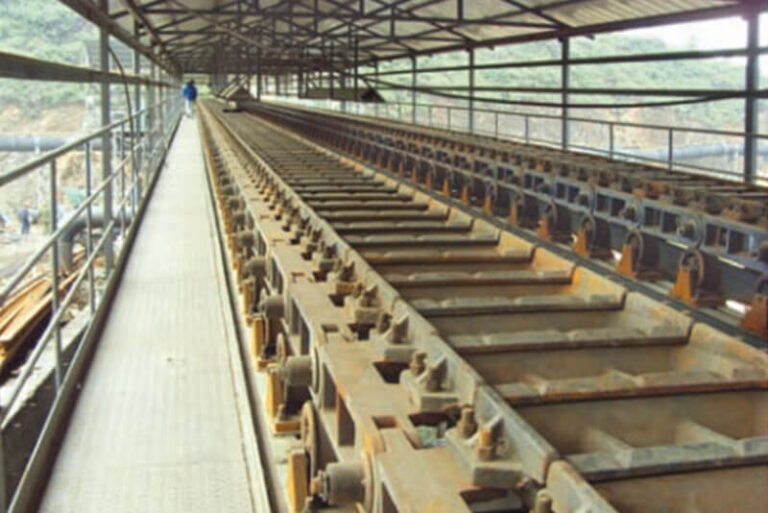

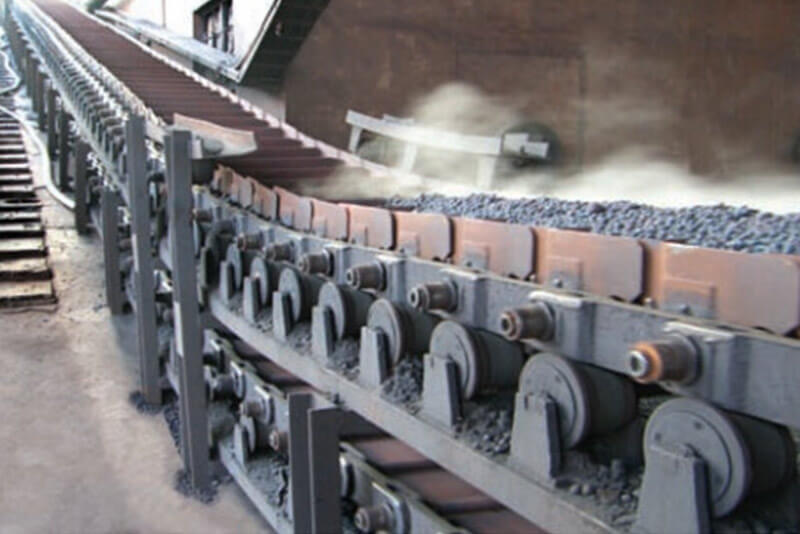

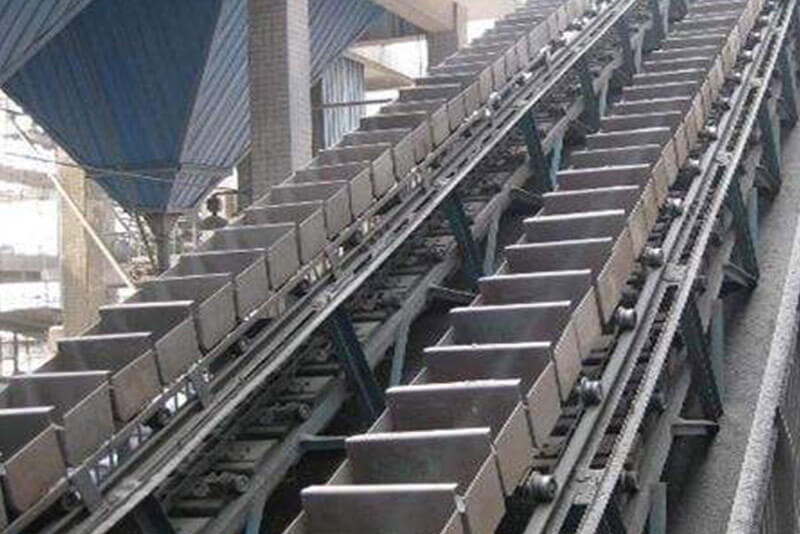

The DS clinker bucket conveyors produced by our company are mainly divided into horizontal type, horizontal-inclined type, inclined type, inclined-horizontal type, horizontal-inclined-horizontal type, etc. according to their layout. They are especially suitable for conveying high-temperature products. Solid materials with large lumps, sharp edges and strong grindability. This chain bucket machine tractor adopts chain bucket segments and has a wide range of applications.
Product Advantages
01.
Large conveying capacity, suitable for materials with high temperature and large lumps;
02.
Long service life and low failure rate;
03.
Easy installation, easy replacement of wearing parts, small maintenance and low operating costs;
04.
It can be transported over long distances and the transmission line layout is flexible.
Application Scope
DS clinker bucket elevator is widely used in building materials, metallurgy, electric power, coal, chemical industry, casting and other industries. It is suitable for materials such as boiler ash, cement clinker, iron slag, slag, limestone, gravel, etc.
Main Technical Specifications
| Model（Hopper Width）mm | 400 | 540 | 640 | 800 | Remark | |||
| Hopper Height（mm） | 160 | 160 | 200 | 250 | 250 | 300 | Horizontal | |
| Conveying Capacity （m3/h） | 0.15 | 29 | 40 | 59 | 74 | 99 | 112 | Horizontal |
| 0.2 | 39 | 53 | 79 | 99 | 124 | 150 | Horizontal | |
| Hopper Speed（m） | 0.25 | 49 | 66 | 99 | 125 | 156 | 187 | Horizontal |
| 0.3 | 60 | 80 | 120 | 150 | 187 | 230 | Horizontal | |
| Inclination | 30 | 35 | 40 | 45 | 50 | 55 | 60 | Tilt |
| Hopper Height（m/s） | 160-350 | 160-350 | 160-350 | 160-350 | 160-350 | 160-350 | 160-350 | Tilt |
| Coefficient | 0.88-0.95 | 0.8-0.91 | 0.69-0.86 | 0.69-0.82 | 0.60-0.82 | 0.50-0.78 | 0.37-0.70 | |
