Product Introduction
The working environment temperature is generally -25 degrees Celsius to above 40 degrees Celsius. For belt conveyors working in special environments, they are heat-resistant, cold-resistant, waterproof, anti-corrosion, explosion-proof, flame-retardant, etc. This series of products can meet the requirements for horizontal and inclined conveying, and can also be used with concave convex arc sections combine with straight lines.
Product Advantages
01.
It has strong conveying capacity, long conveying distance, reliable operation, and is easy to realize automation and centralized control;
02.
The structure is relatively simple and easy to maintain, and the main parts are highly interchangeable and versatile;
03.
The transportation is stable and reliable, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed objects;
04.
Equipment with special requirements for heat resistance, cold resistance, waterproofing, anti-corrosion, explosion-proof, flame retardant, etc. can be customized according to different conveying processes and working environments.
Application Scope

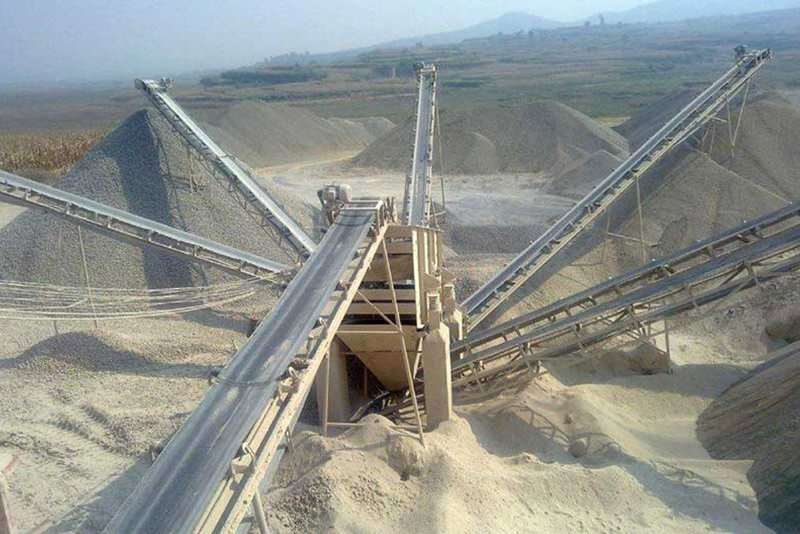

DTII/TD75 fixed belt conveyor can be widely used in metallurgical mining, coal, ports, power stations, building materials, chemical industry, light industry, petroleum and other industries.
Main Technical Specifications
TD75 Fixed Belt Conveyor Technical Specifications
| Width(mm) | 500 | 650 | 800 | 1000 | 1200 | 1400 |
| Speed(m/s) | 0.8-2.5 | 0.8-2.5 | 1.0-3.15 | 1.0-3.15 | 1.0-4.0 | 1.0-4.0 |
| Capacity(t/h) | 69-217 | 127-397 | 198-781 | 342-1522 | 293-2971 | 825-4130 |
| Power(kw) | 2.2-37 | 2.2-90 | 2.2-315 | 30-315 | 5.5-315 | 15-315 |
TD75 Fixed Belt Conveyor Technical Specifications
| Width(mm) | 500 | 650 | 800 | 1000 | 1200 | 1400 |
| Speed(m/s) | 0.8-2.5 | 0.8-2.5 | 1.0-3.15 | 1.0-3.15 | 1.0-4.0 | 1.0-4.0 |
| Capacity(t/h) | 78-232 | 131-391 | 278-824 | 435-1233 | 655-2202 | 891-2996 |
| Power(kw) | 1.5-30 | 1.5-40 | 1.5-75 | 3-100 | 4-185 | 4-185 |
