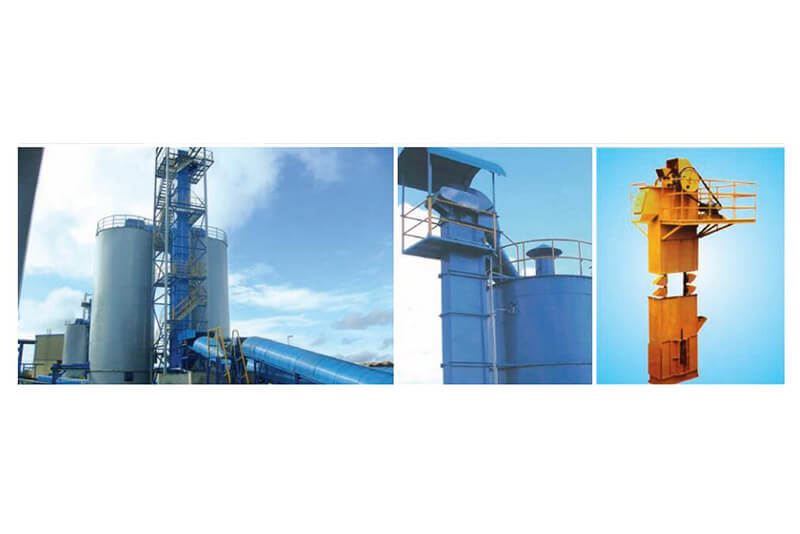

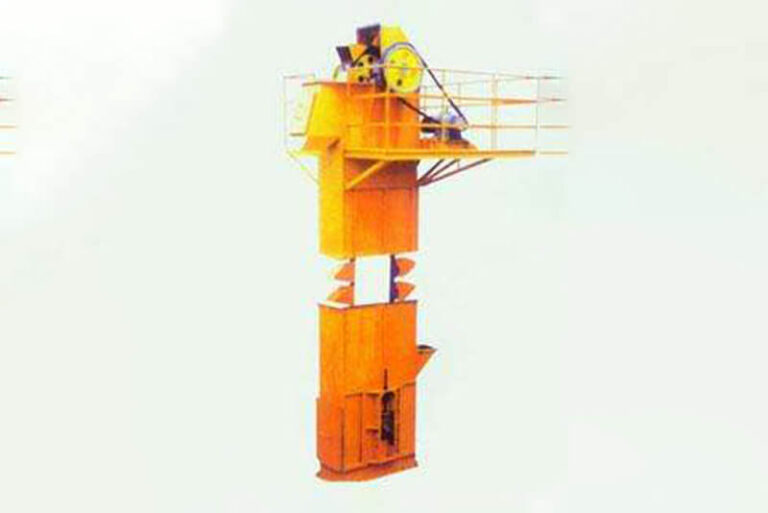

NE Plate Chain Bucket Elevator

  • Capacity: 15-800m3/h
  • Model: NE15-NE800

The NE plate chain bucket elevator is a commonly used vertical conveying equipment. It is used to convey powder, granular and block materials vertically. It can also convey highly abrasive materials, such as cement, sand, soil, coal, and ceramsite sand, etc.

Product Introduction

The material temperature generally does not exceed 250°C. The NE plate chain bucket elevator casing adopts a reinforced structure, which has strong rigidity, high precision, convenient operation and maintenance, compact structure, and the lifting height can reach 46 meters.

The feeding of the elevator adopts the inflow type, and there is little extrusion and collision between the moving parts and the material. Its design ensures that the material will not be scattered during feeding, lifting and unloading, preventing the material from wearing and tearing the machine body. The plate chain is a kind of high-strength wear-resistant chain, which extends the service life of the chain and chain bucket.

Product Advantages

The whole machine adopts a fully sealed design, and there is no dust pollution during operation;

The shell adopts a reinforced structure, which has strong rigidity, high precision and beautiful appearance;

Wide lifting range: it can not only lift general powdery, granular and block materials, but also materials with high grindability;

The NE plate chain bucket elevator has large conveying capacity, long service life, smooth and reliable operation, convenient operation and maintenance, and compact structure.

Application Scope

NE type plate chain bucket elevator is mainly suitable for building materials, electric power, metallurgy, machinery, chemical industry, mining and other industries.

Main Technical Specifications

ModelCapacity(m3/h)Hopper Volume (L)Hopper Distance (mm)Hopper Bucket Speed (m/min)Maximum Iumpiness of Material %
NE15152.5203.229.810255075100
NE30327.8304.830.16550403025
NE506014.7304.830.19075584740
NE10011035400319075584740
NE15017052.240031130105806555
NE20021084.650030130105806555
NE300320127.5500301701351008570
NE400380182.5600301701351008570
NE500470260.97003020516512510590
NE600600300.270030240190145120100
NE800800501.880030275220165135110
Note: The hopper filling factor is calculated as 0.7.
