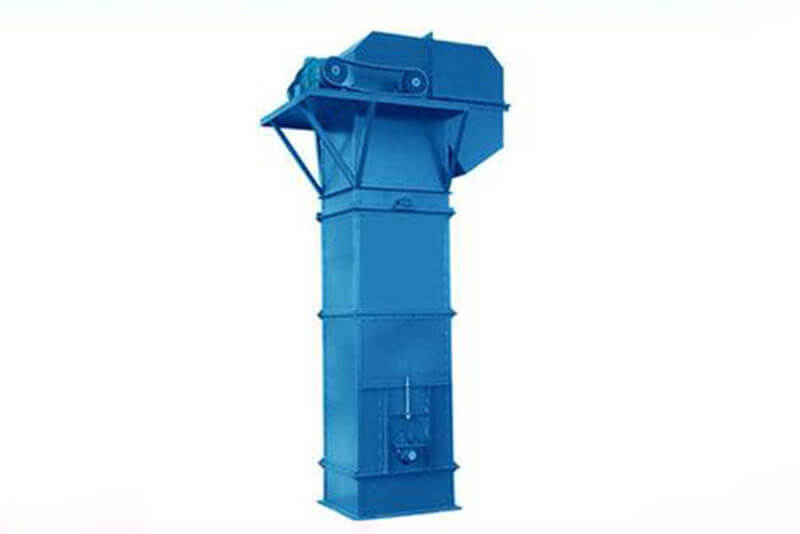

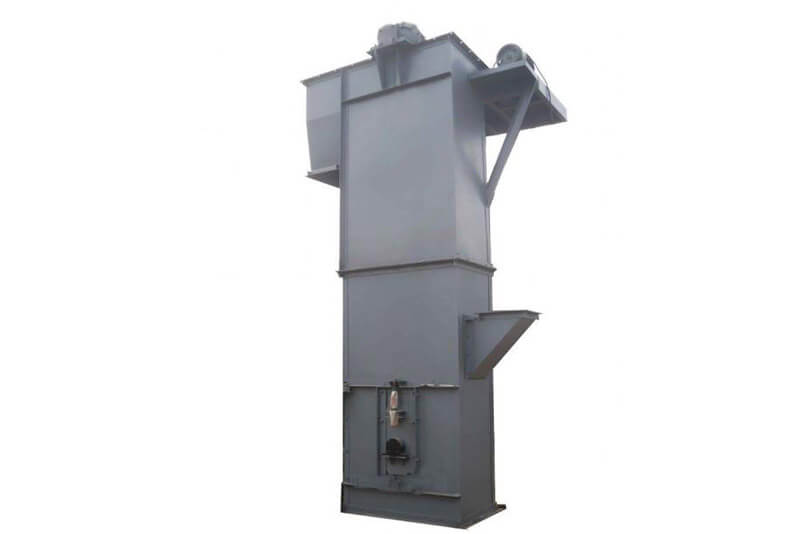

PL-A High Temperature Bucket Elevator

  • Lifting Height: 4-45m
  • Capacity: 10-240 m3/h
  • Model: PL250- PL1000

PL-A high temperature bucket elevator is suitable for bulk materials with a temperature less than 900 degrees Celsius, such as pellet clinker, lump coal, ore, pebbles, etc..

Product Introduction

In view of the use and promotion of heavy-duty crawler bucket elevators in the metallurgical industry, our company continues to improve key components such as traction chains, transmission sprockets, etc., using high wear-resistant, high-strength materials and special processing to achieve the advantages of longer service life, lower failure rate, and easier replacement of wearing parts. Due to its unique technology and production process, our company has obtained a patent certificate issued by the National Patent Office, patent No.: ZL201120202315.6.

The traction part of PL-A high temperature bucket elevator adopts single chain type, and the chain is fixed on the back of the angle hopper. It is slowly gravity unloading and uses chains as traction components. The conveyed materials are evenly fed from the feed port of the lower section and unloaded by the upper section using the material’s own weight.

Product Advantages

The material adopts special technology with wear-resistant and high strength;

Longer service life and lower maintenance rate;

Easy to install and replace wearing parts;

Sealing devices are installed between each section and at the access door to ensure no dust leakage and achieve clean and environmentally friendly production.

Application Scope

PL-A high temperature bucket elevator is widely used in electric power, chemical industry, metallurgy, building materials, mining and other industries, and is suitable for materials such as pellet clinker, lump coal, ore, pebbles, etc.

Main Technical Specifications

ModelCapacity(m3/h)Power(kw)Hopper Capacity/LHopper Distance(mm)Lifting Height(m)
PL250Heavy Duty Track Chain22.3-302.2-7.53.33504.7-30.3
PL35030-653.0-1510.23504.0-35.2
PL45050-905.5-18.5204065.12-40
PL50065-1007.5-22204065.5-45
PL60070-10011月30日244065.5-45
PL80080-12015-45324065.5-45
PL100080-24015-55504065.5-45
