Product Introduction

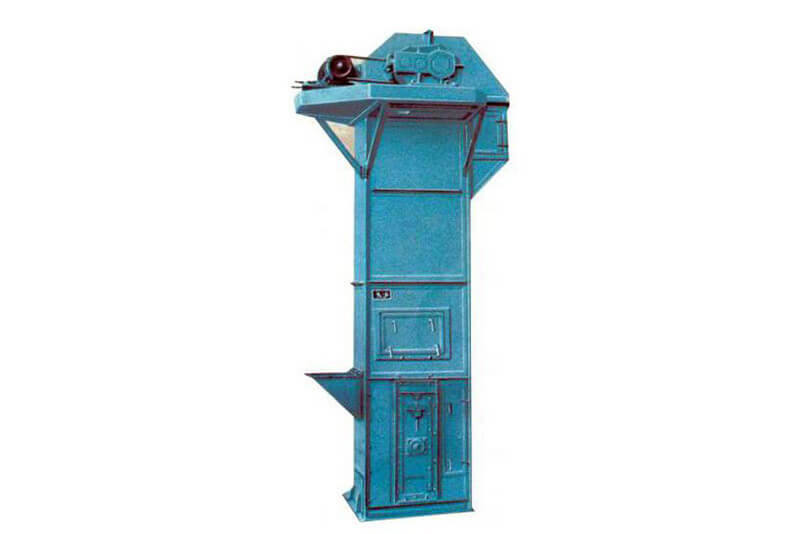

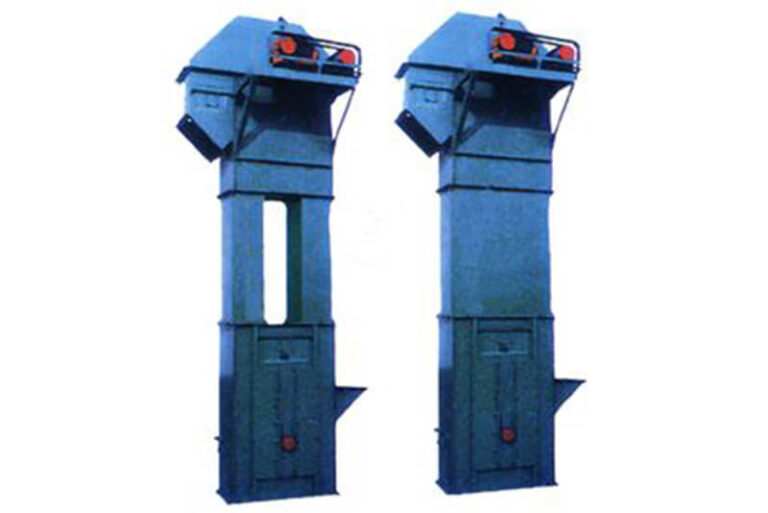

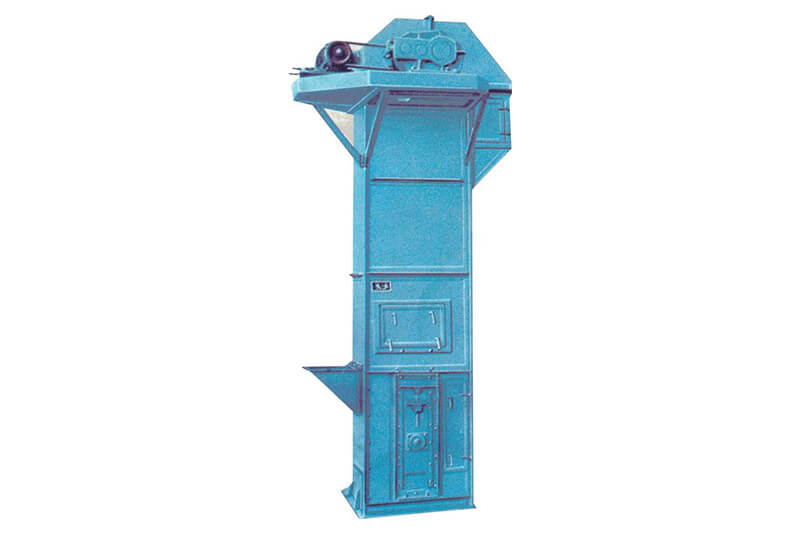

It is suitable for lifting of materials with a diameter of less than 50mm and can meet the production needs of most enterprises. TH bucket elevator is a chain bucket lifting equipment that continuously and vertically lifts bulk materials. It is mainly used to lift various bulk materials and broken materials without grinding or with little grindability. This type The temperature of materials lifted by the elevator is generally below 250°C.
Product Advantages
01.
The whole machine has compact structure, small dimensions and small space;
02.
The middle part of the casing is welded with bent components, giving the casing high overall rigidity and reliability;
03.
The transmission sprocket has an integral structure and its surface has been strengthened for easy installation, high strength and wear resistance;
04.
Sealing devices are installed between each section and at the access door to ensure no dust leakage and achieve clean and environmentally friendly production.
Application Scope
TH/HL type bucket elevators are widely used in electric power, chemical industry, metallurgy, building materials, mining and other industries.
Main Technical Specifications
| Model | Capacity（m3/h） | Volume (L) | Length(mm) | Width(mm) | Speed | Rotation Speed(r/min) | Max Materials Size (mm) | Lifting Height (m) | ||
| Deep Fight | Shallow Bucket | Deep Fight | Shallow Bucket | |||||||
| HL160 | 6 | 2.2 | 1.1 | 0.65 | 400 | 160 | 0.87 | 47.5 | 25 | 4.54-34 |
| HL250 | 14 | 6.8 | 3.2 | 2.6 | 500 | 250 | 0.87 | 47.5 | 35 | 4.84-30.02 |
| HL300 | 28 | 16 | 5.2 | 4.4 | 500 | 300 | 1.25 | 37.5 | 40 | 4.66-30.16 |
| HL400 | 47.2 | 30 | 10.5 | 10 | 600 | 400 | 1.25 | 37.5 | 50 | 4.52-30.32 |
| TH500 | 118 | 73 | 15 | 9.3 | 688 | 500 | 1.5 | 35.8 | 50 | 4.8-34 |
