Product Advantages
01.
Designed based on the principle of shaft eccentric vibration to generate exciting force, mainly used for feeding in front of coarse crusher;
02.
The vibration is stable and the feeding is continuous and even, avoiding crashes and extending the service life of the equipment;
03.
While feeding, fine materials can be pre-screened to improve crushing efficiency;
04.
The gap between the grids can be adjusted to prevent material clogging;
05.
An optional speed-regulating motor can be installed to control the feeding amount, eliminating the need to frequently start the motor.
Application Scope

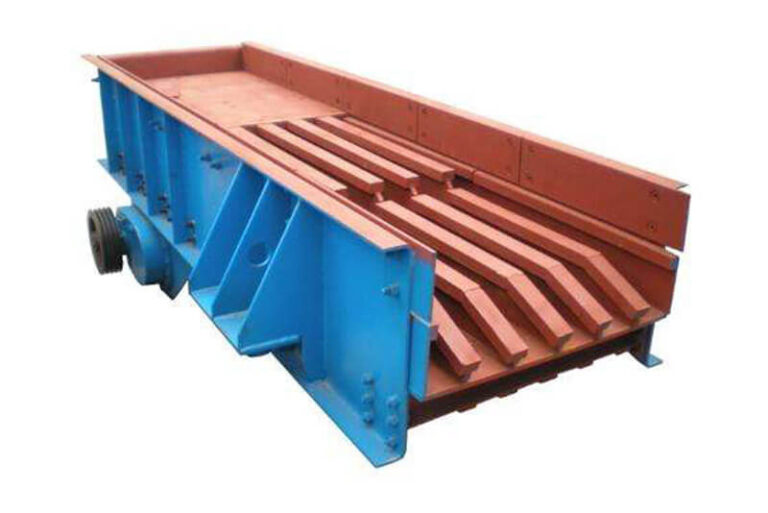

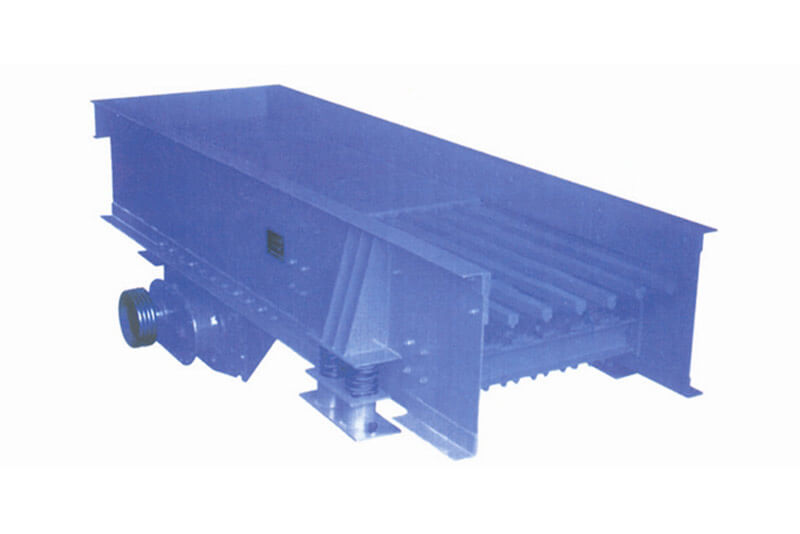

The ZSW vibrating feeder is mainly used to continuously and evenly feed materials in front of the coarse crusher, and can screen fine materials at the same time. It has the advantages of increasing the crusher capacity and is widely used in construction, metallurgy, chemical industry and other industries.
Main Technical Specifications
| Model | Max Grain Size(mm) | Capacity(t/h) | Motor Power(kw) | Dimension(mm) |
| ZWS-380*95 | 500 | 96-160 | 11 | 3800*950 |
| ZWS-420*95 | 500 | 120-240 | 11 | 4200*950 |
| ZWS-490*110 | 580 | 120-280 | 15 | 4900*1100 |
| ZWS-590*110 | 600 | 200-350 | 22 | 5900*1100 |
| ZWS-600*130 | 750 | 400-560 | 22 | 6000*1300 |
