Product Introduction

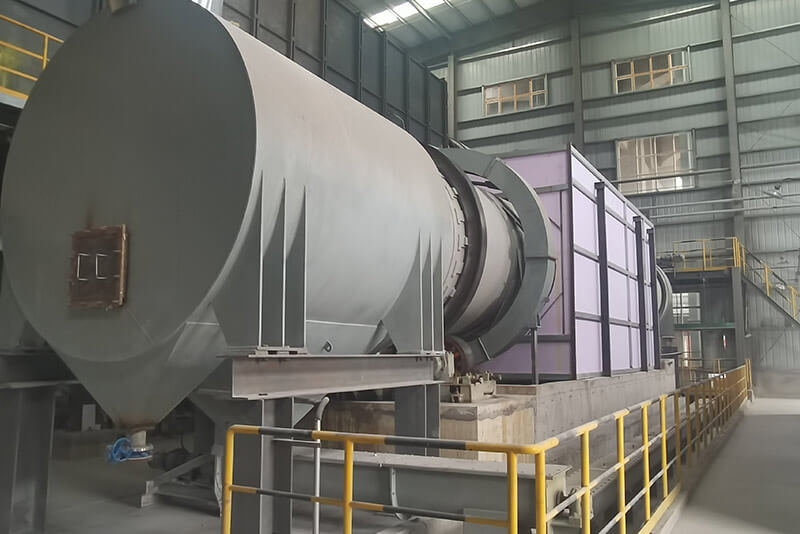

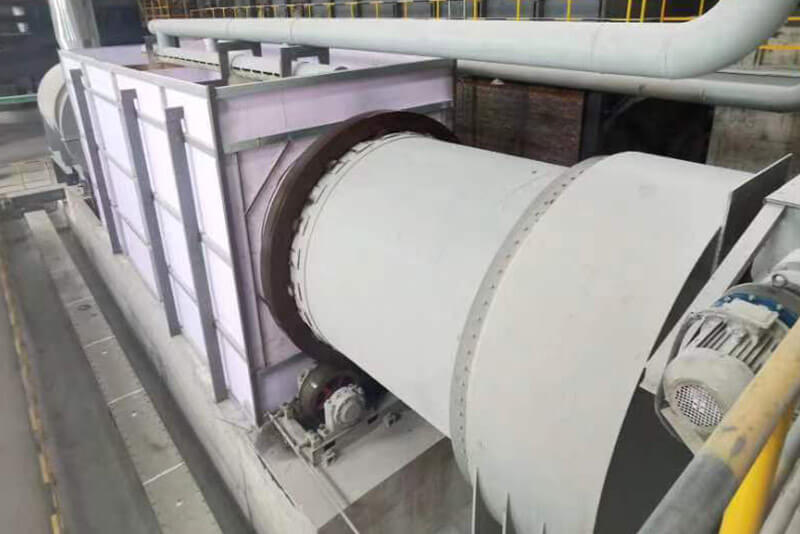

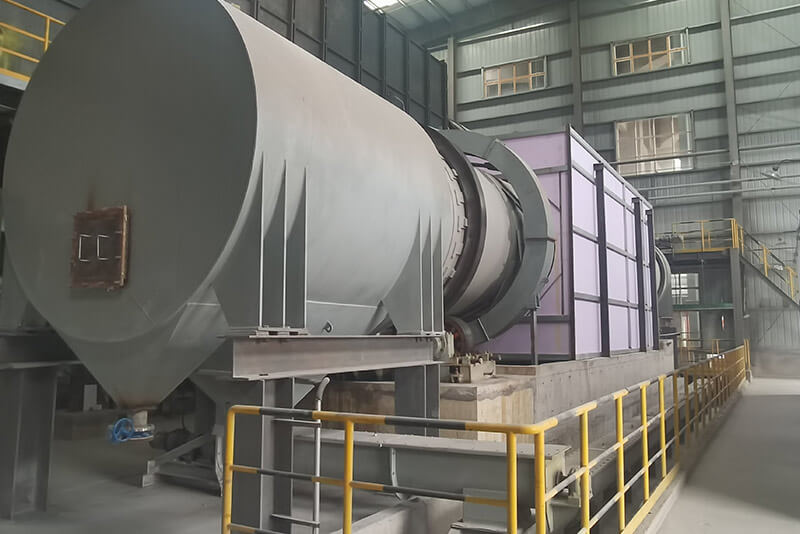

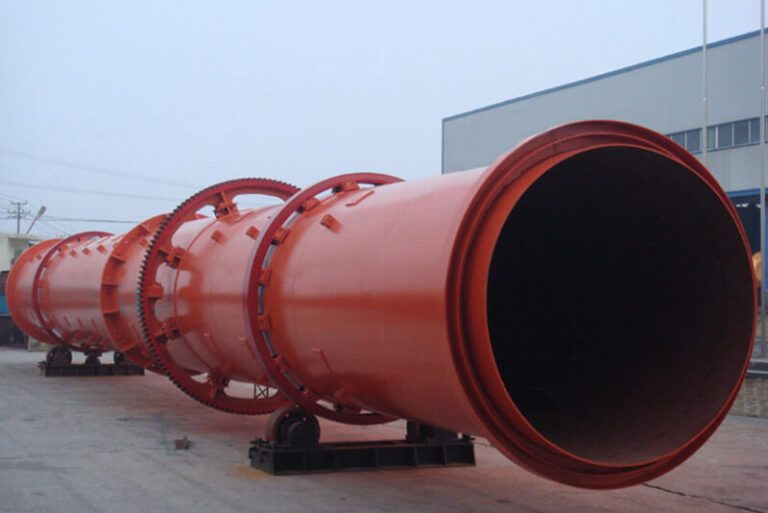

The function of this equipment is to drive the clinker (1000-1200℃) coming out of the rotary kiln through the rotation of the cylinder to fully exchange heat with the air to cool the material to less than 200°C, while improving the quality and grind ability of the clinker, after cooling the materials, all the air enters the kiln as secondary circulation air, which improves the thermal efficiency of the kiln.
Product Advantages
01.
The single cylinder cooler has a compact, reasonable and simple structure;
02.
High operating rate improves the thermal efficiency of the kiln;
03.
It is easy to operate and maintenance, and has low maintenance costs and total equipment investment.
Application Scope
Single cylinder cooler is used for limestone, cement clinker, bauxite, activated lime, aluminum hydroxide, kaolin, etc. Application scope: cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.
Main Technical Specifications
| Dimension | Rotating Speed（r/m） | Capacity（t/h） | Reducer | Motor Model | Power/kw |
| φ1.8×20m | 5.44 | 5-7 | JZQ750-I-1Z | J03-180M-4 | 22 |
| φ2×20m | 4.54 | 7 | JZQ750-I-1Z | Y180-4 | 22 |
| φ2×22m | 4.54 | 7-8.5 | JZQ750-I-1Z | Y180-4 | 22 |
| φ2.2×22m | 0.56-5.57 | 12 | ZL85-15-I | YCT280-4A | 30 |
| φ2.2×22m | 5.49 | 8.5 | JZQ750-II-1Z | Y180L-4 | 22 |
| φ2.2×22m | 5.49 | 8.5 | JZQ750-II-2Z | Y180L-4 | 22 |
| φ2.5×22m | 3.5 | 14 | ZL100-35.5-I | YR280M-6 | 55 |
| φ2.5×22m | 2.5-4.5 | 12-14 | ZL100-15-I | YCT315-4B | 45 |
| φ2.5×25m | 3.5 | 14 | ZLH100-35.5-I | YR280M-6 | 55 |
| φ2.5×25m | 1.54-4.54 | 15-18 | ZL100-15-I | YCT355-4A | 55 |
| φ2.8×28m | 1.35-3.91 | 15-18 | JH320C-SW-40 | YTSP280S-4 | 75 |
| φ3×28m | 2-4 | 17 | ZL115-15-II | YCT355-4B | 75 |
| φ3×30m | 3.056 | 18.5 | ZL115-15-I | JS115-6 | 75 |
| φ3×32m | 3.056 | 21.5 | ZL115-15-II | Y315M-6 | 90 |
| φ3×36m | 3.10 | 23 | ZL115-15-II | JS115-6 | 75 |
| φ3.2×36m | 2.74-4.67 | 28 | Main ZL130-15-I Auxiliary ZL50-14-II | Main YCTD355-4B Auxiliary Y180L-6 | 132 15 |
| φ3.2×36m | 0.66-4.93 | 28 | Main JH450C-SW-35.5 Auxiliary ZL50-14-I | Main Z4-225-31 Auxiliary Y180L-6 | 132 15 |
| φ3.2×36m | 4.17 | 28 | Main NZS955-40II Auxiliary ZL42.5-15-II | MainY315S-4 Auxiliary Y132M-4 | 110 7.5 |
| φ3×38m | 3.14 | 27 | MainZSY500-50-V Auxiliary ZL180-20-II | Mian Y315L1-4 Auxiliary Y160L-6 | 160 11 |
| φ3.2/3.8/3.2×33m | 3.29 | 30-35 | ZL130-15-II | Y315L2-6 | 132 |
| φ3.4×40m | 1.54—4.47 | 30-32 | ZL130-15-II | YCTD355-4B | 132 |
| φ3.5×36m | 2.73 | 30-33 | Main JH450C-SW-40 Auxiliary ZL50-14-I | Main YR315M1-6 Auxiliary Y180L-6 | 132 15 |
| φ3.6×40m | 3.28-1.09 | 34 | Main ZL130-16-I Auxiliary ZL42.5-11-I | Main JZS2-11-1 Auxiliary Y160M-6 | 1607.5 |
