Product Introduction
It is mainly used in the second and third stage crushing in metal mines, construction sand and gravel processing. Because of its strong crushing capacity and large output, it is more often used for crushing medium-hard materials.
The crushing cone performs a swing motion under the driving action of the eccentric sleeve, driving the crushing wall to squeeze and grind the material between the rolling mortar wall. According to the lamination theory, the material is subject to forces from multiple directions, crushed and polished according to its own texture, forming stable stone particles. Those materials that meet the discharging requirements fall from the swing gap of the crushing wall, and the remaining materials continue to be crushed until they meet the requirements.
Product Advantages
01.
Reasonable coordination of eccentricity, cavity shape and motion parameters greatly improves production capacity and work efficiency;
02.
Realize fully automatic intelligent control, using Siemens PLC and touch screen control system;
03.
Visual Internet monitoring and enhanced control system functions.
04.
Strengthen automation functions, make operation capabilities stable and intelligent, and extend service life.
Application Scope

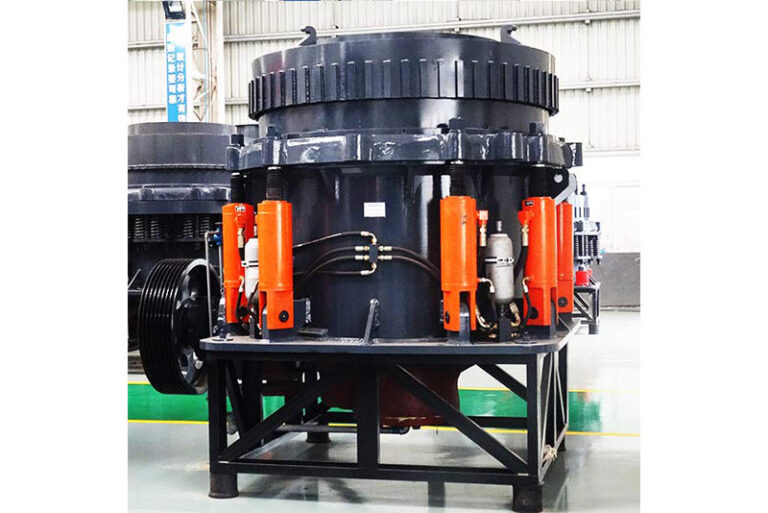

The hydraulic cone crusher is used for sand and gravel yard, concrete mixing station, dry mortar, power plant desulfurization, quartz sand, etc. It is suitable for materials such as river pebbles, granite, basalt, iron ore, limestone, quartz stone, diabase, and iron ore, gold mine, copper mine, etc.
Main Technical Specifications
| Model | Type | Input Size(mm) | Min Discharge(mm) | Capacity(t/h) | Max Motor(kW) |
| HPT100 | C1(Super Thick) | 140 | 19 | 75-140 | 90 |
| C2(Thick) | 100 | 13 | 60-110 | ||
| M(Medium) | 70 | 9 | 52-100 | ||
| F1(Fine) | 50 | 9 | 50-95 | ||
| F2(Super Fine) | 20 | 6 | 45-90 | ||
| HPT200 | C2(Thick) | 185 | 19 | 145-250 | 160 |
| M(Medium) | 125 | 16 | 135-235 | ||
| F1(Fine) | 95 | 13 | 115-220 | ||
| F2(Super Fine) | 75 | 10 | 90-190 | ||
| HPT300 | C1(Super Thick) | 230 | 25 | 220-440 | 250 |
| C2(Thick) | 210 | 19 | 190-380 | ||
| M(Medium) | 150 | 16 | 175-320 | ||
| F1(Fine) | 105 | 13 | 145-280 | ||
| F2(Super Fine) | 80 | 10 | 110-240 | ||
| HPT400 | C1(Super Thick) | 295 | 30 | 300-630 | 315 |
| C2(Thick) | 251 | 25 | 285-560 | ||
| M(Medium) | 196 | 20 | 250-490 | ||
| F1(Fine) | 110 | 13 | 180-345 | ||
| F2(Super Fine) | 90 | 10 | 135-320 | ||
| HPT500 | C1(Super Thick) | 330 | 38 | 425-790 | 400 |
| C2(Thick) | 290 | 30 | 370-700 | ||
| M(Medium) | 210 | 22 | 330-605 | ||
| F1(Fine) | 135 | 16 | 270-535 | ||
| F2(Super Fine) | 95 | 13 | 220-430 | ||
| HPT800 | C1(Super Thick) | 350 | 38 | 570-1200 | 630 |
| C2(Thick) | 299 | 32 | 520-1050 | ||
| M(Medium) | 265 | 25 | 475-950 | ||
| F1(Fine) | 220 | 16 | 370-800 | ||
| F2(Super Fine) | 150 | 13 | 310-600 |
