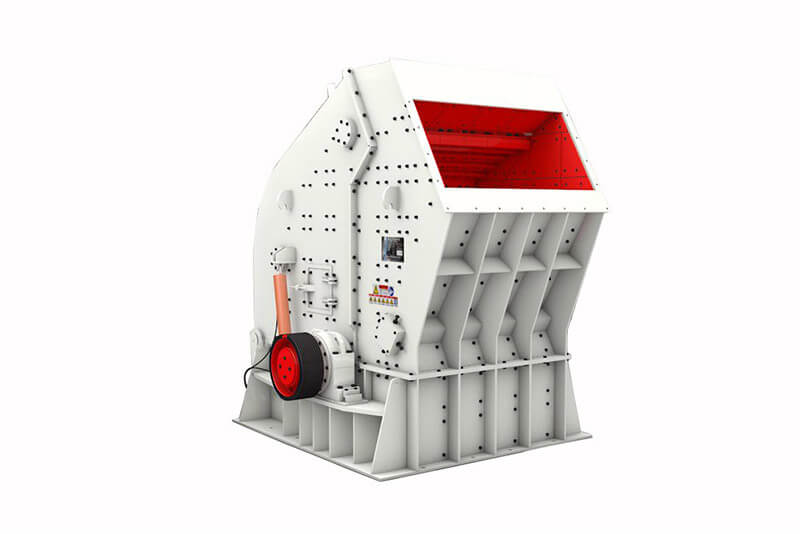

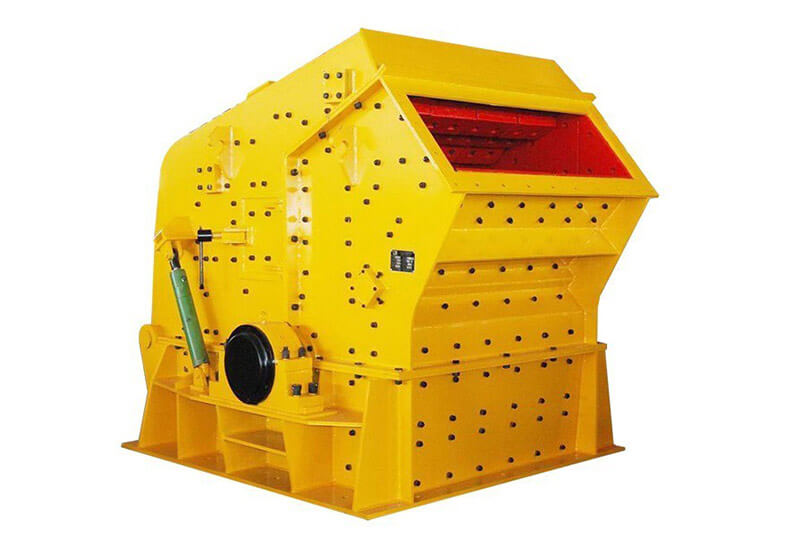

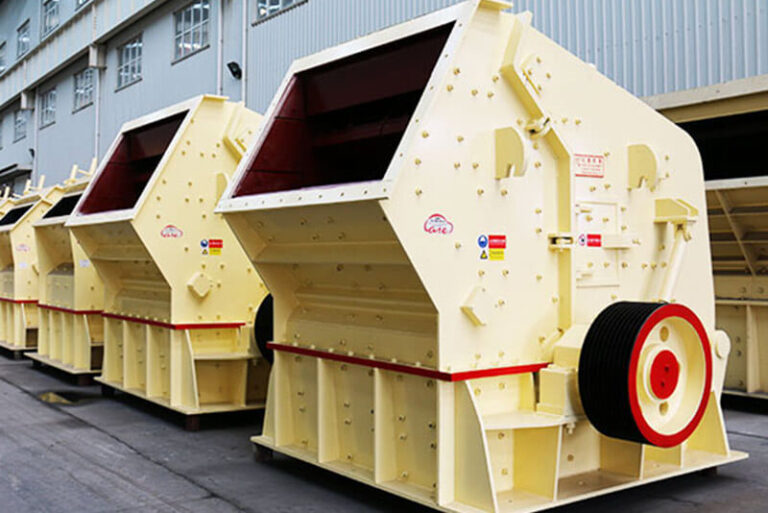

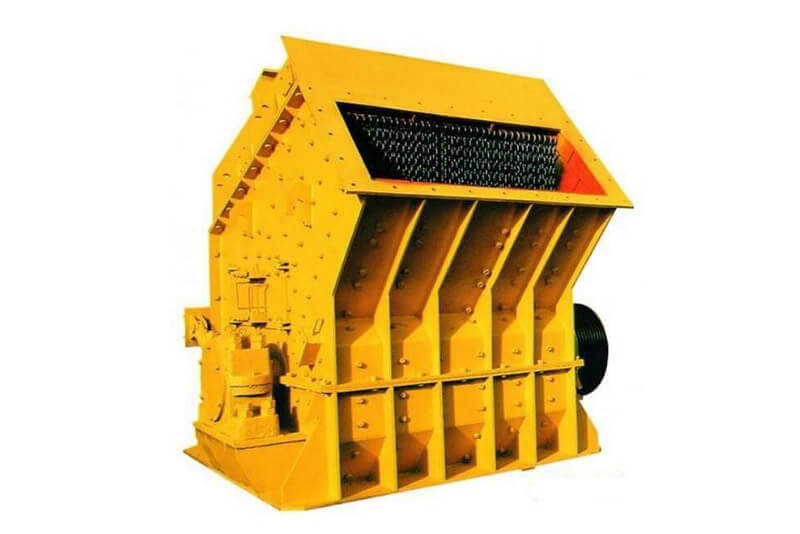

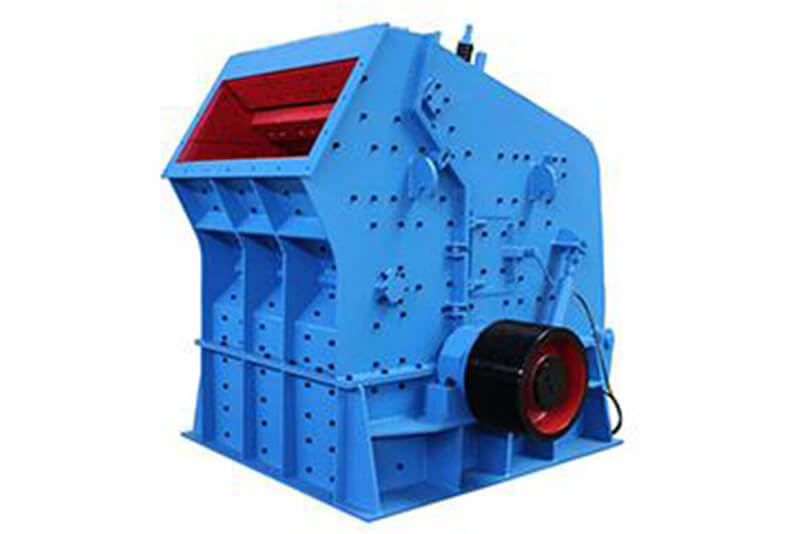

Product Introduction
It integrates the application of high-precision rotors with large rotational inertia, multi-functional fully hydraulic operating systems, involute crushing chambers and other new scientific research results. It has a high overall cost-effectiveness and helps customers obtain reliable profitability. Impact crusher is a crushing machine that uses impact energy to break materials.
When working, the motor drives the rotor to rotate at high speed. When the material enters the action area of the plate hammer, it is crushed by the high-speed impact of the plate hammer. The broken material is thrown along the tangential direction to the impact plate installed above the rotor for crushing again, and then from the impact plate. The impact plate bounces back to the plate hammer action area and is broken again. This process is repeated until the material is broken to the required particle size and discharged from the discharge port. By adjusting the gap between the impact frame and the rotor, the particle size and shape of the material can be changed.
Product Advantages
01.
Involute cavity design improves crushing efficiency;
02.
The fully hydraulic operating system is simple, fast and efficient;
03.
Using high-strength and high-wear-resistant materials, the service life is greatly extended;
04.
Fine welding technology and strong impact resistance ensure stable operation of the machine.
Application Scope
The application scope of impact crusher is metallurgy, mining, cement, chemical industry and other industrial sectors, highways, water conservancy projects, construction projects and other fields. It is suitable for materials such as ores and rocks with a pressure resistance of not more than 300Mpa and a surface moisture of not more than 8%-10%.
Main Technical Specifications
| Model | Standard(mm) | Inlet Size (mm) | Max FeedParticle Size（mm） | Capacity (t/h) | Power(kw) |
| CI5X1110 | 1100×1000 | 1020×820 | 500 | 150-200 | 160-200 |
| CI5X1213 | 1200×1300 | 1320×880 | 550 | 200-300 | 200-250 |
| CI5X1315 | 1300×1500 | 1540×930 | 600 | 250-350 | 250-315 |
| CI5X1520 | 1500×2000 | 2040×995 | 400 | 400-600 | 400-500 |
| CI5X1524 | 1500×2400 | 2516×767 | 400 | 500-700 | 560-630 |
| CI5X1630 | 1600×2700 | 2740×787 | 400 | 600-900 | 710-800 |
| CI5X1313 | 1300×1300 | 1320×1225 | 800 | 300-450 | 200-250 |
| CI5X1415 | 1400×1500 | 1540×1320 | 900 | 350-550 | 250-315 |
| CI5X1620 | 1600×2000 | 2040×1630 | 1100 | 500-900 | 400-500 |
| CI5X2023 | 2000×2300 | 2310×1990 | 1300 | 1200-2000 | 1000-1260 |
