Product Introduction
It can be used in ventilation, dust removal and material recovery systems in mining, metallurgy, refractory materials, coal, chemical industry, electric power and other industries. It is especially suitable for the initial purification of high-temperature flue gas.

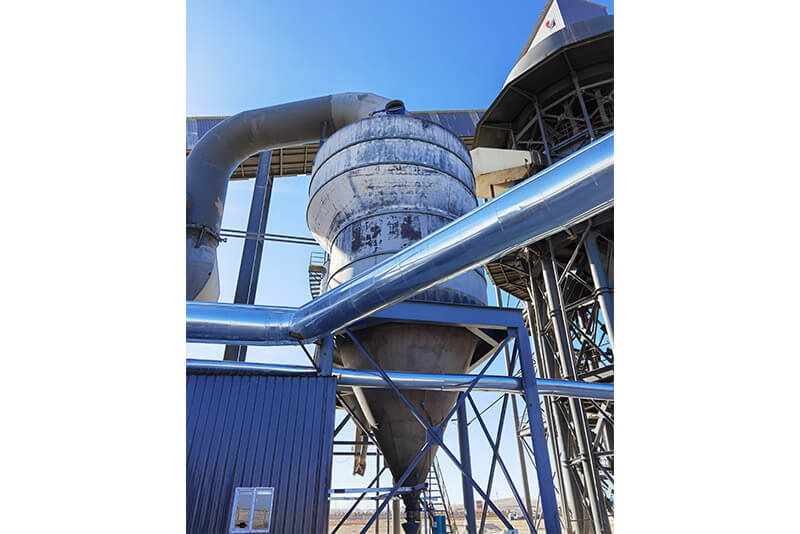

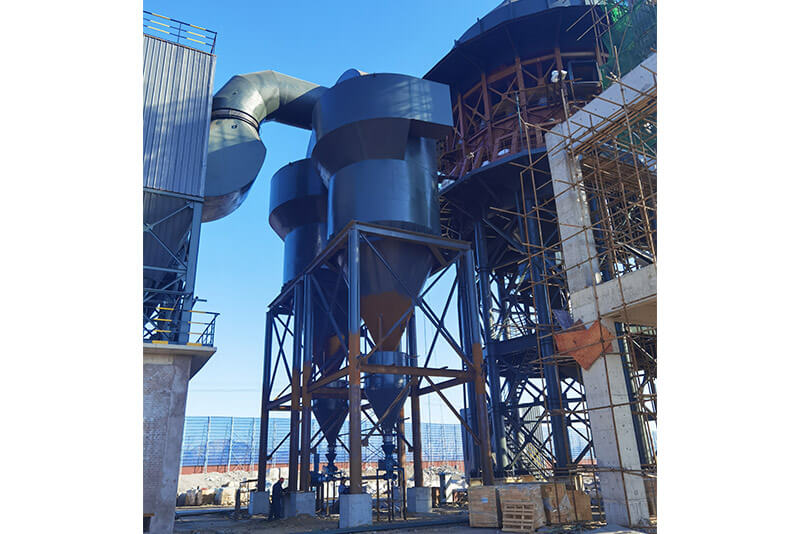

The cyclone dust collector consists of an air inlet pipe, an exhaust pipe, a cylinder, a cone and an ash hopper. Its diameter, height, shape and size of the air inlet and exhaust port are the main factors affecting the dust removal performance. The cyclone dust collectors produced by our company include single-cylinder, double-cylinder and four-cylinder dust collectors, with a total of more than 30 specifications and models. They can handle dust-containing gases with an air volume of 670-283600m³/h to meet a variety of production needs.
Product Advantages
01.
It is suitable for purifying dust with high density and particle size greater than 5 μm.
02.
There are no moving parts, making management and maintenance easy.
03.
Small size, simple structure and low price.
04.
It can withstand high temperatures of 400 degrees and can be cleaned by dry method.
Application Scope
Cyclone dust collectors are widely used in ventilation, dust removal and material recovery systems in mining, metallurgy, refractory materials, coal, chemical industry and electric power industries.
Main Technical Specifications
| Model | Inlet Wind Speed 12（m/s） | Inlet Wind Speed 15（m/s） | Inlet Wind Speed 18（m/s） |
| Air Volume (m³/h) | Air Volume (m³/h) | Air Volume (m³/h) | |
| XFCC300 | 670 | 830 | 1000 |
| XFCC400 | 1180 | 1480 | 1780 |
| XFCC500 | 1860 | 2320 | 2780 |
| XFCC600 | 2670 | 3340 | 4000 |
| XFCC700 | 3630 | 4540 | 5440 |
| XFCC800 | 4750 | 5940 | 7130 |
| XFCC1000 | 7990 | 10000 | 12000 |
| XFCC1200 | 11600 | 14600 | 17500 |
| XFCC1500 | 17000 | 21260 | 25500 |
| XFCC2000 | 30000 | 37800 | 45300 |
| XFCC2500 | 47300 | 59000 | 70900 |
| XFCC300X2 | 1340 | 1660 | 2000 |
| XFCC400X2 | 2360 | 2960 | 3560 |
| XFCC500X2 | 3720 | 4640 | 5560 |
| XFCC600X2 | 5340 | 6680 | 8000 |
| XFCC700X2 | 7260 | 9080 | 10880 |
| XFCC800X2 | 9500 | 11880 | 14260 |
| XFCC1000X2 | 15980 | 20000 | 24000 |
| XFCC1200X2 | 23200 | 29200 | 35000 |
| XFCC1500X2 | 34000 | 42520 | 51000 |
| XFCC2000X2 | 60000 | 75600 | 90600 |
| XFCC2500X2 | 94600 | 118000 | 141800 |
| XFCC300X4 | 2680 | 3320 | 4000 |
| XFCC400X4 | 4720 | 5920 | 7120 |
| XFCC500X4 | 7440 | 9280 | 11120 |
| XFCC600X4 | 10680 | 13360 | 16000 |
| XFCC700X4 | 14520 | 18160 | 21760 |
| XFCC800X4 | 19000 | 23760 | 28520 |
| XFCC1000X4 | 31960 | 40000 | 48000 |
| XFCC1200X4 | 46400 | 58400 | 70000 |
| XFCC1500X4 | 68000 | 85040 | 102000 |
| XFCC2000X4 | 120000 | 151200 | 181200 |
| XFCC2500X4 | 189200 | 236000 | 283600 |
