Ball Mill

Dimension: Φ2.2*11–Φ5.0×15m
Capacity: 14-165t/h
Grain Size: ≤25mm

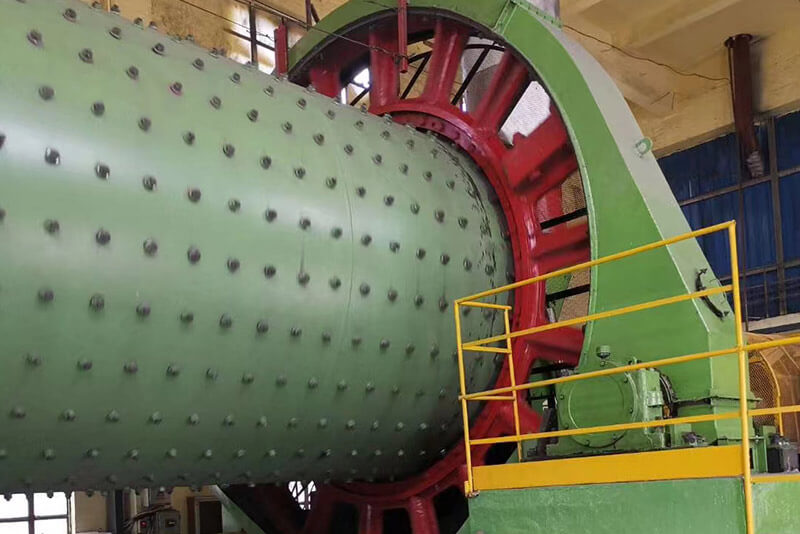

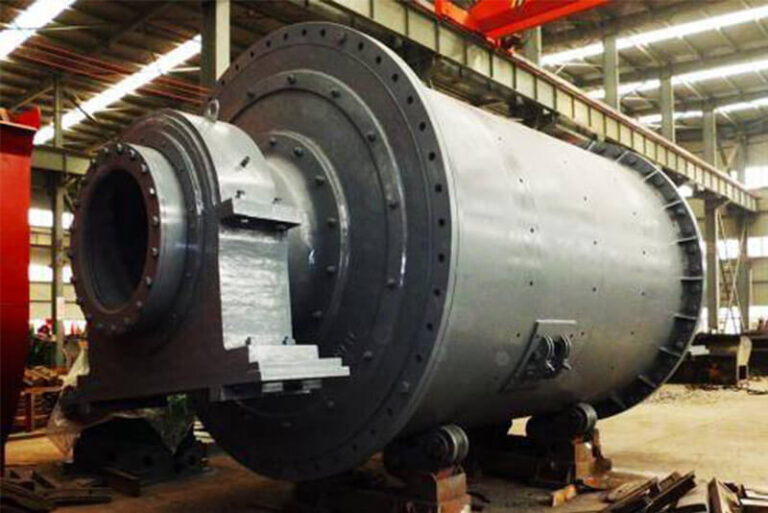

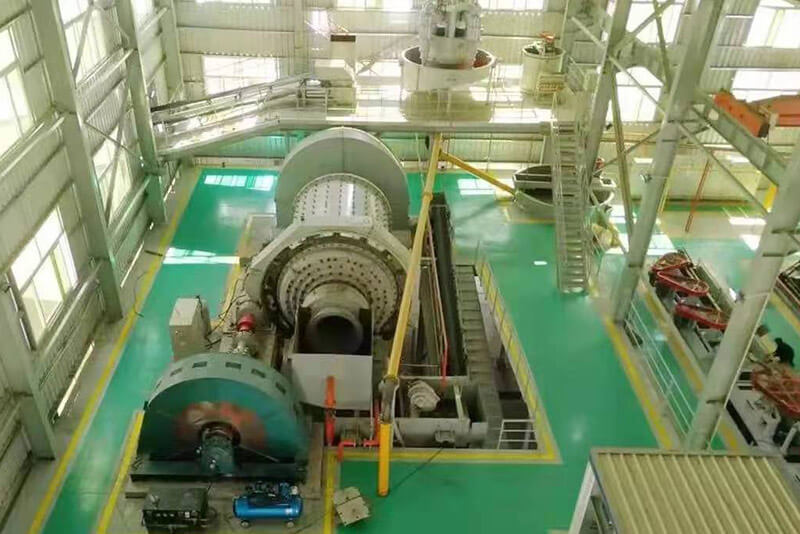

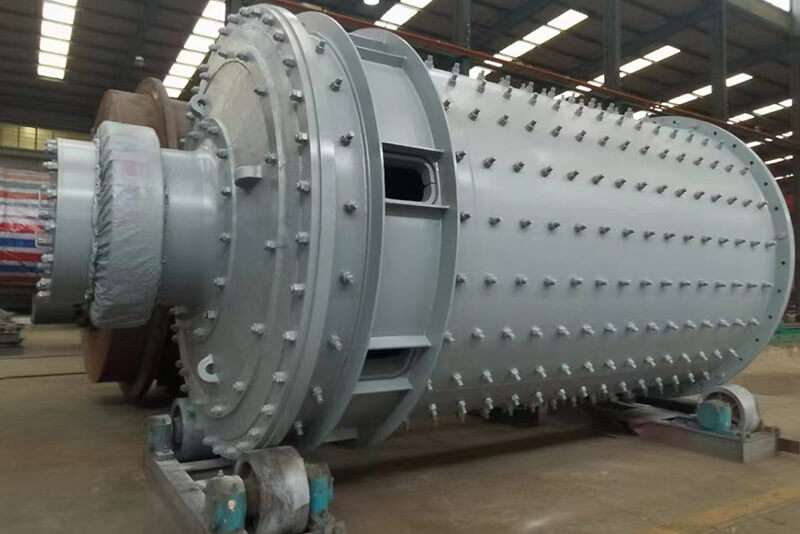

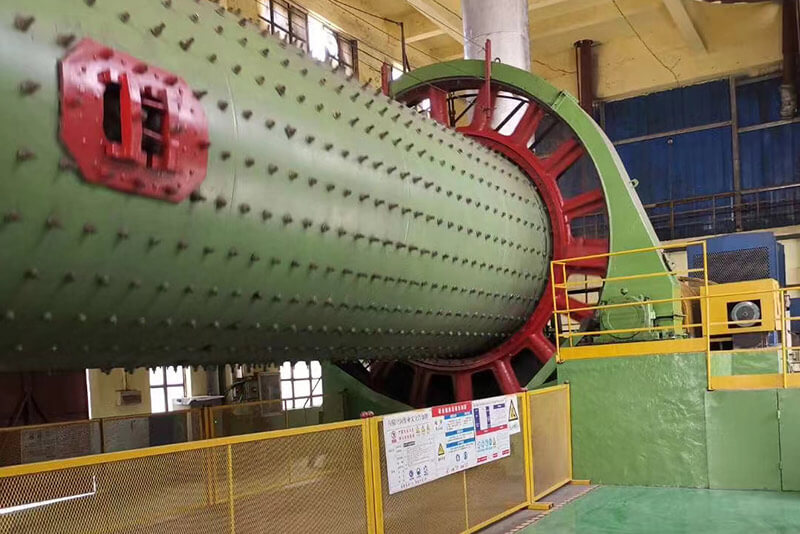

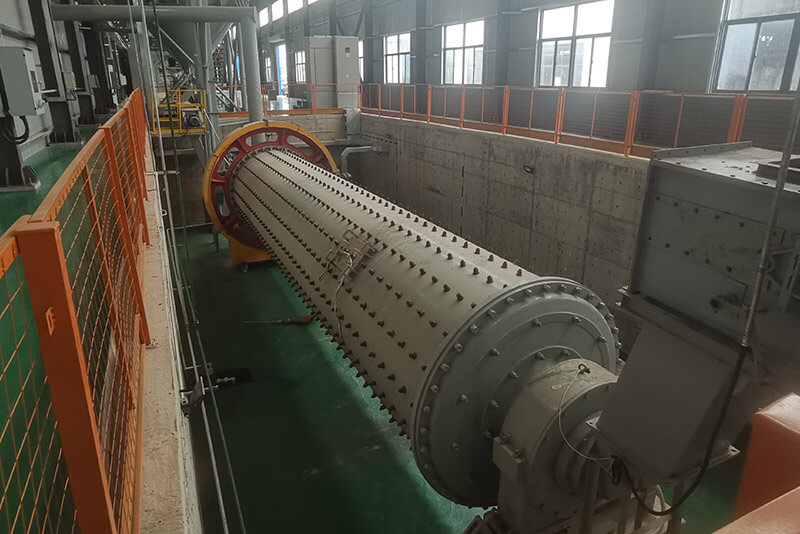

The ball mill is composed of a horizontal cylindrical rotating device, lining plate, compartment plate, main bearing, feeding and unloading device, transmission device and other main parts.

Online chat

Leave a message

Product Introduction

Our ball mill uses its unique combined compartment plate and discharge grate plate to adjust the material level of each bin, increase the ventilation volume, and improve the conditions inside the mill. At the same time, it uses a new lining plate to adjust the mill speed and optimize the gear. The design and bearing lubrication parameters increase the smoothness and service life of the mill operation and improve the grinding efficiency.

Product Advantages

01.

The ball mill has strong adaptability to fluctuations in the physical properties of materials (such as particle size, moisture, hardness, etc.);

02.

Less metal consumption for unit product, and it has a compact structure, stable operation, easy to operate and maintain;

03.

The lining plate is cast from high-quality wear-resistant materials, which is wear-resistant, has a long service life, large production capacity, and large crushing ratio, and it can adapt to different operating conditions;

04.

The product has fine and uniform particle size, the particle gradation is easy to adjust, the product qualification rate is high, the sealing is good, the dust pollution is small, the grinding efficiency is high, and the energy consumption is low.

Application Scope

The ball mill is mainly used for materials: steel slag, lime, quartz stone, bauxite, blue stone, kaolin, lithium ore (spodumene, lepidolite), calcite, magnesite, quartz sand, water slag, slag, aluminum ash, pulverized coal ash, glass, barite, potassium feldspar, alumina, granite, clinker, bauxite, etc.

Main Technical Specifications

Dimension(m)	Speed （r/min）	Grain Size (mm)	Capacity	Loading Weight	Main Motor Model	Main Motor Power (kw)	Main Motor Speed (r.p.m)	Main Reducer Model	Main Reducer Speed Ratio
Φ2.2×11	22.2	≤25	15～17	50	JR1512-8	570	740	ZD80	5
Φ2.4×8	20.91	≤25	14～18	39.5-42	JR1512-8	570	740	ZD80	5
Φ2.4×9	20.91	≤25	23~25	50	JR1512-8	570	740	ZD80	5
Φ2.4×10	20.91	≤25	16~18	50	TR1512-8	630	740	ZD80	5
Φ2.4×11	21	≤25	17~19 20~22	60~62	YR710-8/1180	710	740	JDX630	5.6
Φ2.4×12	21	≤25	18~20 22~24	63~65	YR800-8/1180	800	740	MBY710	6.3
Φ2.4×13	21	≤25	21~22 24~26	66~68	YR800-8/1180	800	740	MBY710	6.3
Φ2.6×10	20.6	≤25	21~24	64	YR800-8/1180	800	740	JDX710	6.3
Φ2.6×11	20.6	≤25	21~28	69	YR800-8/1180	800	740	JDX710	6.3
Φ2.6×13	20.6	≤25	28~31	80	YR1000-8/1180	1000	740	JDX800	6.3
Φ3.0×9	19.3	≤25	35~40	80~83	YR1000-8/1180	1000	740	MBY800	7.1
Φ3×11	18.92	≤25	44~47	95~100	YR1250-8/1430	1250	740	JDX900	7.1
Φ3×12	18.92	≤25	48~52	103	YR1250-8/1430	1250	740	JDX900	7.1
Φ3×13	18.92	≤25	39~45	110~116	YR1400-8/1430	1400	740	JDX900	7.1
Φ3.2×11	18.3	≤25	45~48	110~112	YR1400-8/1430	1400	740	JDX900	7.1
Φ3.2×13	18.7	≤25	45~50	125	YR1600-8/1430	1600	740	JDX1000	7.15
Φ3.4×11	18	≤25	45~55	115	YR1600-8/1430	1600	740	JDX1000	7.15
Φ3.5×13	17	≤25	50~55	150	YR2000-8/1730	2000	740	JS130-A-F1
Φ3.5×13	17.5	≤25	50~60	150	YR2000-8/1730	2000	740	JDX1000	6.3
Φ3.8×13	16.3	≤25	65~70	185	YR2500-8/1730	2500	740	JS130-C-F1
Φ3.8×13	16.3	≤25	65~70	185	YR2500-8/1730	2500	740	JS130-C-F1
Φ4×13	16.3	≤25	78~80	191	YRKK900	2800	745	JS140-A
Φ4.2×11	15.6	≤2	120~140	190	YR2800-8/1730	2800	740	JS140-A-F1D
Φ4.2×13	15.6	≤2	140~155	225	YRKK1000-8	33500	740	JS150-A
Φ4.2×13	15.6	≤2	140~155	225	YRKK1000-8	3550	740	JS150-A
Φ4.2×13	15.6	≤2	140~155	225	YRKK1000-8	3550	740	JS150-B
Φ4.6×13.5	14.5	≤25	140	280	YRKK1000-6	4500	995
Φ4.6×14	14.5	≤25	145	285	YR1000-6	4500	995
Φ5.0×15	14	≤25	160~165	350	YRKK1000-8	6000	740
