Product Introduction

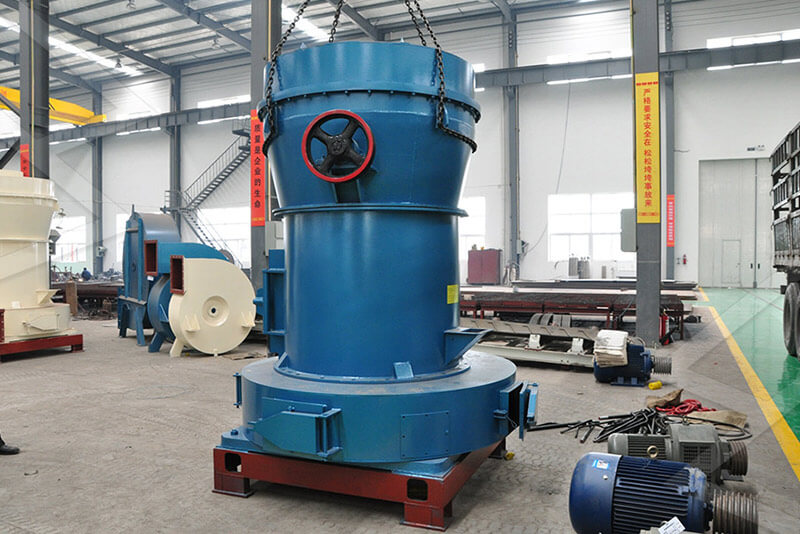

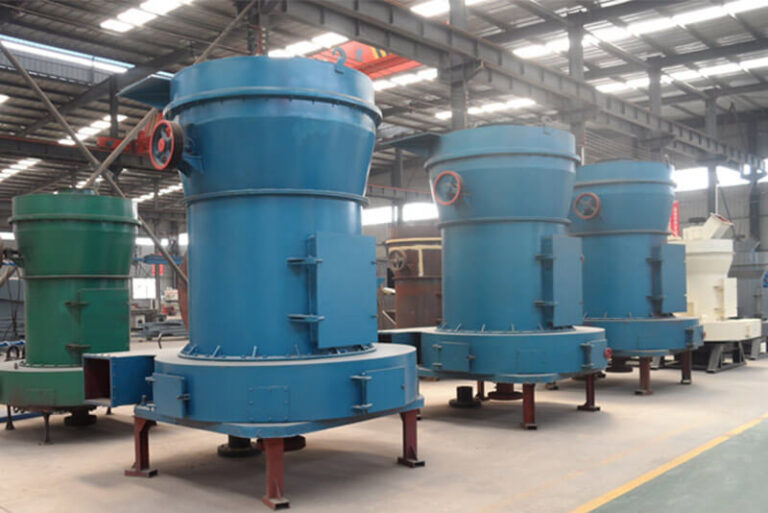

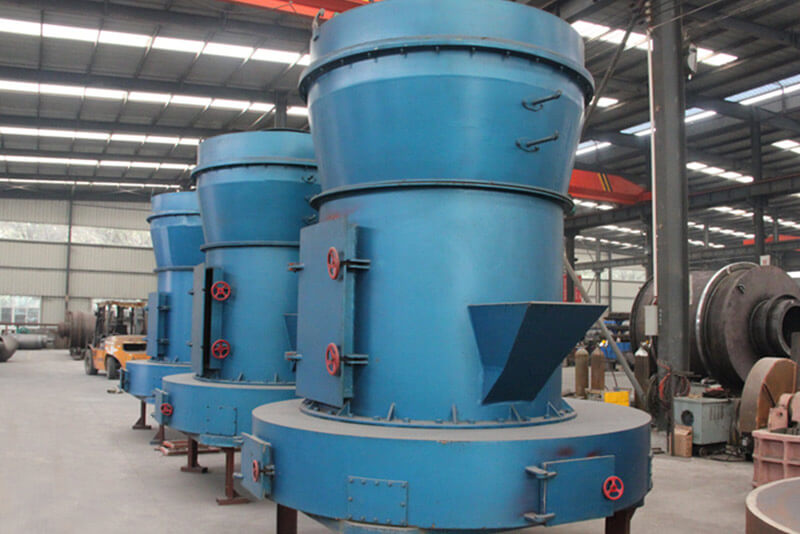

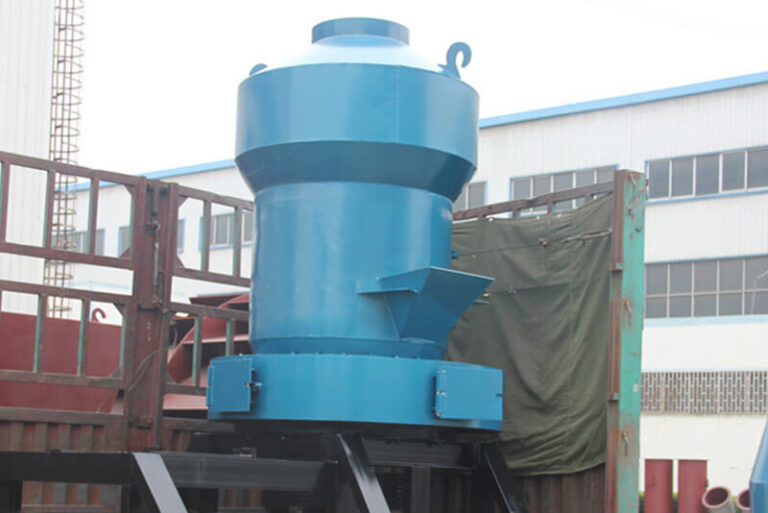

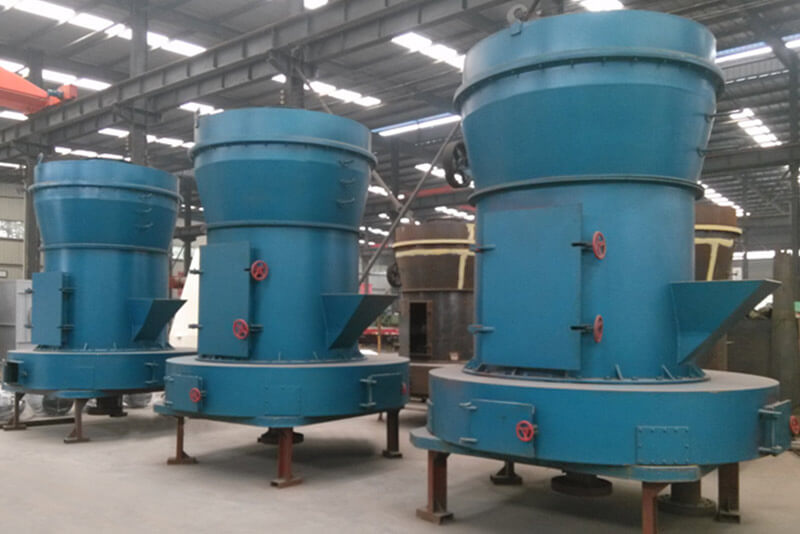

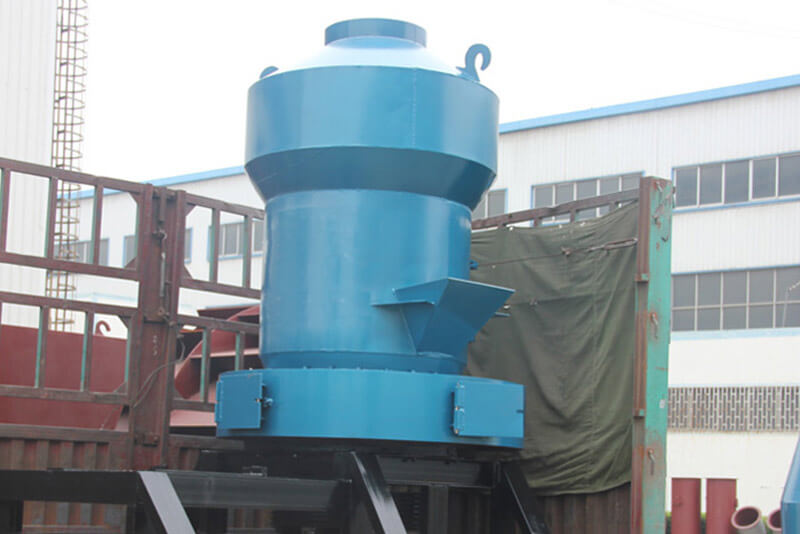

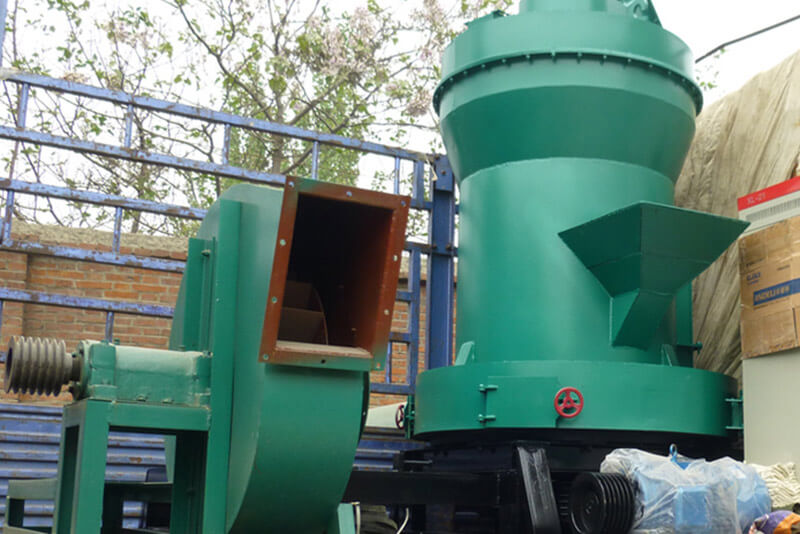

The complete structure of Raymond mill is composed of main machine, analytical machine, pipeline device, blower, finished product cyclone separator, jaw crusher, bucket elevator, electromagnetic vibration feeder, electronic control motor, etc. The main machine of Raymond mill consists of frame, air inlet volute, blade, grinding roller, grinding ring, cover and motor. When working, the materials to be crushed are added into the machine from the feed hopper on the side of the machine casing, and rely on the grinding roller device suspended on the plum blossom frame of the main machine to revolve around the vertical axis and at the same time rotate on its own. Due to the centrifugal force during rotation, The grinding roller swings outward and presses against the grinding ring, causing the blade to scoop up the material and send it between the grinding roller and the grinding ring. The rolling and rolling of the grinding roller achieves the purpose of crushing the material.
Product Advantages
01.
Vertical structure, small footprint and strong completeness;
02.
Fine craftsmanship, excellent casting, and high durability;
03.
Safe and stable operation, smooth transmission and long service life;
04.
Centralized control of the electrical system, automated operation, less dust and noise, and high screening rate.
Application Scope
Raymond mill is widely used in the processing of calcium carbonate crushing, gypsum powder, national desulfurization, non-metallic mineral powder, coal powder grinding and preparation, etc. The applicable materials are limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum , diabase, quartz stone, bentonite, etc.
Main Technical Specifications
| Model | Grinding Rolls No. | Size(R×H)mm | Grinding Ring Inner Diameter And Height (mm) | Feed Particle Size(mm) | Discharge Particle Size(mm) | Capacity(t/h) | Motor Power(KW) | Weight(t) | Dimension(mm) |
| 3R2615 | 3 | 260×150 | 780×150 | ≤20 | 0.8-0.045 | 0.8-2.5 | 18.5 | 4.2 | 5650×3305×5950 |
| 3R2715 | 3 | 270×150 | 830×150 | ≤20 | 0.9-2.8 | 22 | 4.8 | 5600×3400×5900 | |
| 4R3216 | 4 | 320×160 | 970×160 | ≤25 | 1.8-4.5 | 37 | 15 | 9900×5800×10580 | |
| 5R4121 | 5 | 410×210 | 1280×210 | ≤30 | 2.5-9.5 | 75 | 25.7 | 7900×8000×9700 |
