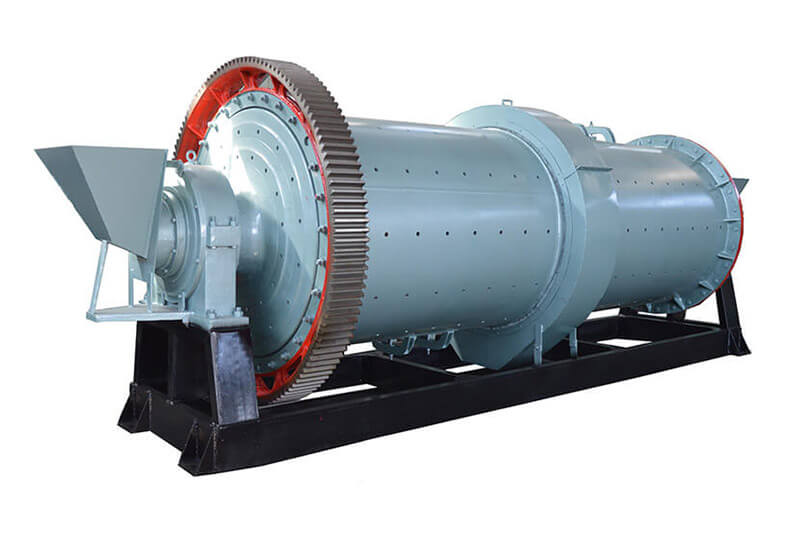

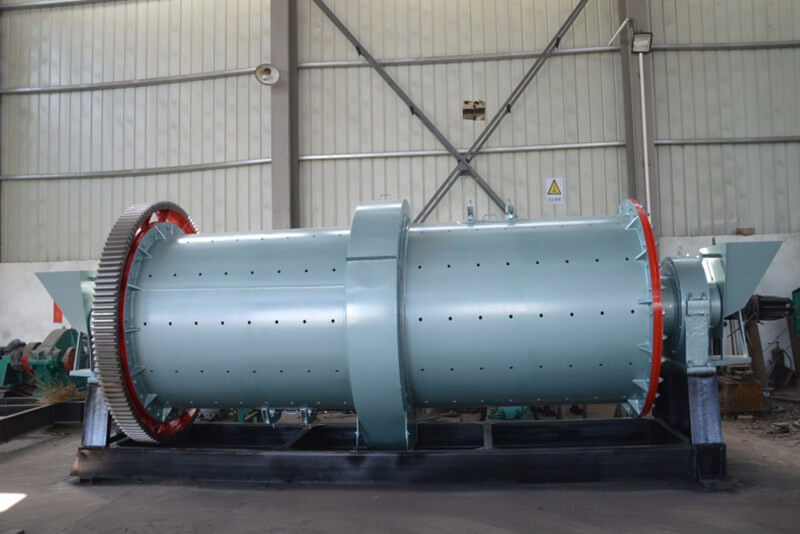

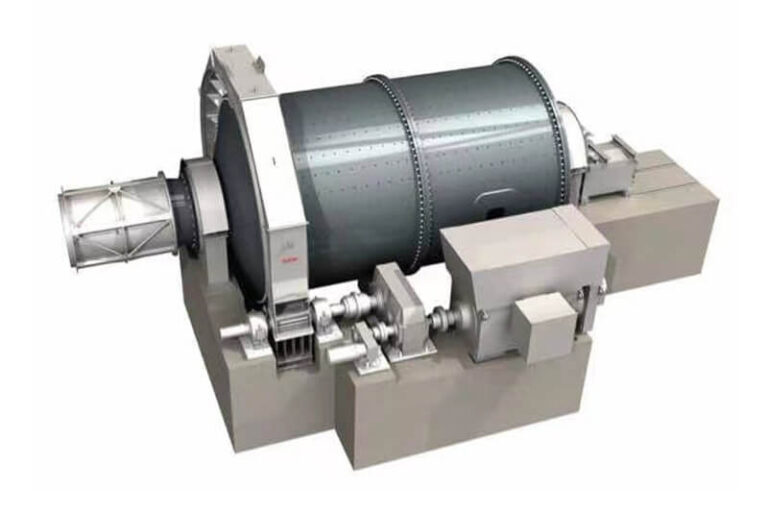

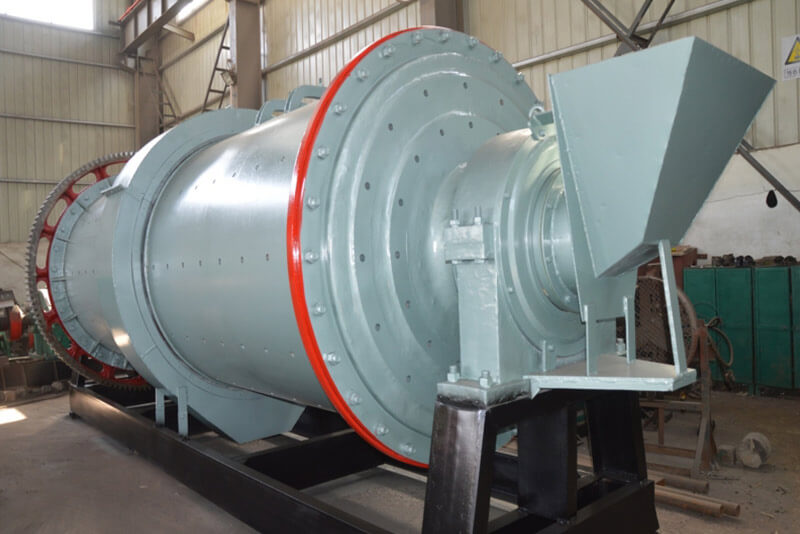

Product Introduction
The principles of rod mills and ball mills are basically the same, but the grinding media are different. The rod mill uses the rotation of the cylinder to bring up the steel rod and part of the material and falls to the bottom of the bin to crush the material. The ball mill uses the rotation of the cylinder to bring up the steel ball or steel segment and part of the material to fall to the bottom of the bin to crush the material.
Product Advantages
01.
The advantages of the rod mill is that the grinding medium is in line contact with the ore during the grinding process, so it has selective grinding effect;
02.
The product particle size is relatively uniform and there are few over-crushed mineral particles;
03.
When used for rough grinding, the processing capacity of the rod mill is larger than that of the same specification ball mill;
04.
Stable operation, energy saving and consumption reduction, and high output.
Application Scope
Rod mills are widely used in artificial stone sand, mineral processing plants, and chemical plant power departments.
Main Technical Specifications
| Model | Diameter (mm) | Cylinder Length (mm) | Motor Model | Motor Power (kW) | Speed(r/min) | Length(mm) | Width (mm) | Height(mm) | Capacity(t/h) | Area (m³) | Weight(kg) |
| MBY 0918 | 900 | 1800 | Y225M-8 | 22 | 730 | 4980 | 2370 | 2020 | 0.62~3.2 | 0.9 | 5700 |
| MBY 0924 | 900 | 2400 | Y250M-8 | 30 | 730 | 5670 | 3280 | 2020 | 0.81~4.3 | 1.2 | 5880 |
| MBY 1224 | 1200 | 2400 | Y280M-8 | 45 | 730 | 6450 | 2800 | 2500 | 0.4~4.9 | 2.28 | 12308 |
| MBYg 1530 | 1500 | 3000 | JR117-8 | 80 | 725 | 7253 | 3070 | 2280 | 2.4~7.5 | 5 | 21210 |
| MBYg 2130 | 2100 | 3000 | JR136-8 | 180 | 735 | 8122 | 4220 | 3073 | 14~35 | 9 | 42123.5 |
| MBYg 2136 | 2100 | 3600 | JR137-8 | 210 | 735 | 8958 | 4320 | 3025 | 43~61 | 10.8 | 45800.5 |
| MBYg 2736 | 2700 | 3600 | JR158-8 | 380 | 743 | 10764 | 5750 | 3620 | 32~86 | 17.7 | 90441 |
| MBY 2740 | 2700 | 4000 | TDMK400-32 | 400 | 187.5 | 12300 | 5700 | 4700 | 43~110 | 20.4 | 75000 |
| MBY 3040 | 3000 | 4000 | JR1510-8 | 570 | 740 | 9800 | 3900 | 3900 | 54~135 | 26 | 90000 |
| MBY 3245 | 3200 | 4500 | TDMK800-36 | 800 | 167 | 14600 | 7000 | 5300 | 64~180 | 31 | 113000 |
| MBY 3645 | 3600 | 4500 | TDMK1250-40 | 1250 | 150 | 15200 | 8800 | 6800 | 80~230 | 41.8 | 139000 |
| MBY 3654 | 3600 | 5400 | TDMK1600-40 | 1600 | 150 | 15900 | 8800 | 6800 | 100~250 | 49.7 | 150000 |
