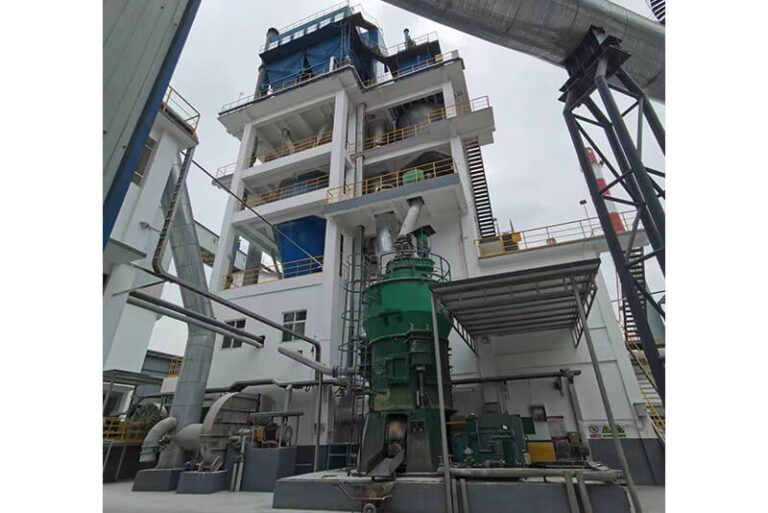

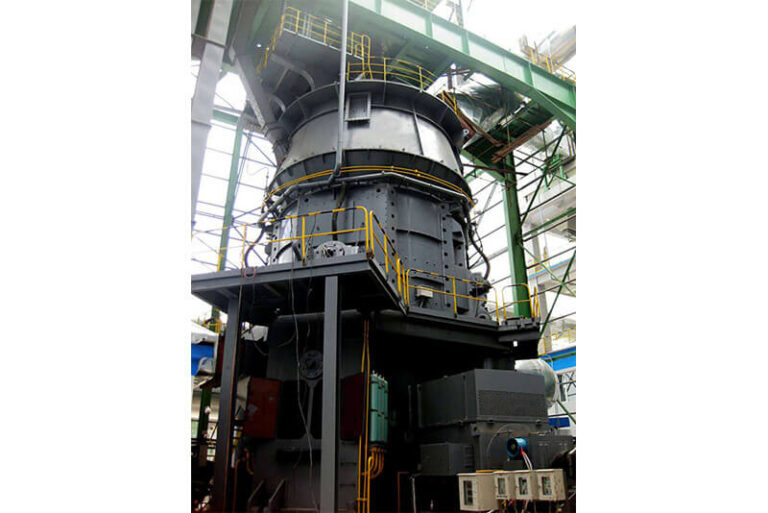

Vertical Grinding Mill

Product Introduction

When working, the main motor drives the grinding plate to rotate through the reducer. At the same time, the hot air enters the vertical mill body from the air inlet. The material falls from the discharge port to the middle of the grinding plate. Under the action of centrifugal force, the material moves evenly from the middle to the edge of the grinding plate and passes through the grinding plate. When the grinding roller area is on the grinding machine, it is crushed by the grinding roller, and the large materials are directly crushed, and the fine-grained materials are extruded to form a material bed for inter-granular crushing. The crushed materials continue to move toward the edge of the grinding disc until they are taken away by the strong airflow at the air ring, and the larger particles fall back to the grinding disc to continue crushing. When the materials in the air flow pass through the upper separator, they are crushed on the rotor. Under the action of the blades, the coarse particles return to the grinding disc for grinding, and the qualified fine powder comes out of the grinding along with the air flow and is collected by the powder collector of the system. The collected powder is the product ground by the vertical mill. When the iron blocks and other debris mixed into the material move to the edge of the grinding plate, they fall to the lower chamber of the mill and are scraped by the scraper installed at the bottom of the grinding plate into the slag discharge port and discharged out of the machine.

Product Advantages

Application Scope

The vertical grinding mill integrates crushing, drying, grinding, grading and transportation. It can be widely used in cement, electric power, metallurgy, chemical industry, non-metallic minerals and other industries, and focuses on the three major industries of non-metallic ores, coal powder and slags.

Main Technical Specifications

LM Vertical Grinding Mill (For Non-metallic minerals, metallic minerals, cement raw materials, etc.)

Model

LM19-2K

LM22-2K

LM24-2K

LM27-2K

LM27-3K

LM31-2K

LM31-3K

LM34-2K

LM34-3K

LM37-3K

LM39-3K

LM44-4K

LM50-4K

Capacity（t/h）

10~40

15~50

20~70

25~85

30-90

38~135

40~145

46~160

48~170

55~196

65~220

75~260

90~400

Grain Size/mm

＜30

＜35

＜45

＜50

＜50

Moisture

＜4%

Finished Product Fineness

0.84-0.037mm（20-400 mush）

Finished Product Moisture

≤1%

Main Motor Power/ kW

200~220

280~315

400~450

500~560

500~630

630~900

710~1000

800~1120

800~1250

900~1600

1120~1800

1800~2200

2500~3150

LM Vertical Coal Grinding Mill ( For Metallurgical blast furnace coal injection, new energy, kiln fuel, thermal boiler pulverized coal, cement and other industries)

Model	LM12-2M	LM17-2M	LM19-2M	LM22-2M	LM24-2M	LM27-2M	LM31-2M	LM31-3M	LM34-3M	LM37-3M
Capacity t/h	4~6	7~10	10~17	16~22	20~30	26~40	35~50	40~65	45~80	65~100
Grain Size（mm）	<38		<40		<45		<50
Coal Moisture	<15%
Coal Fineness	R0.08=10-20%（200 mush,80-90% passed）
Coal Powder Moisture	<1-5%
Main Motor Power/ kW	55~75	110~132	185~220	250~280	315~355	400~500	500~630	560~800	710~900	900~1250

LM Vertical Slag Grinding Mill （Mining Slag, water slag, furnace slag, steel slag, etc.）

Model

LM19-2N

LM22-2N

LM24-2N

LM27-2N

LM27-3N

LM34-2N

LM34-3N

LM35-3N

LM39-3N

LM44-4N

LM50-4N

LM58-4N

Capacity（t/h）

7~15

9~20

11~25

12~32

15~40

18~50

22~55

25~68

55~100

75~135

90~160

130~200

Slag Moisture

<15%

Finisher Product Specific Surface Area

≥420㎡/kg

Finished Product Moisture

≤1%

Main Motor Power（kw）

200~250

280~355

400~500

500~710

500~800

900~1120

900~1250

1250~1800

1800~2500

2500~3150

3150~4200

4500~5300

LM Vertical Sand Powder Grinding Mill

Model

LM19-2Y

LM22-2Y

LM24-2Y

LM27-2Y

LM27-3Y

LM31-2Y

LM31-3Y

LM34-2Y

LM34-3Y

LM37-3Y

LM39-4Y

LM44-4Y

LM50-4Y

Grain Size (mm)

<30

<35

<45

<50

<55

Sand Powder Moisture(%)

≤3%

Capacity(t/h)

30-80

35-120

40-150

50-200

55-220

65-250

80-300

120-450

130-500

140-550

160-600

240-700

300-900

Finished Product Grain Size

≤2.36mm
