Product Introduction

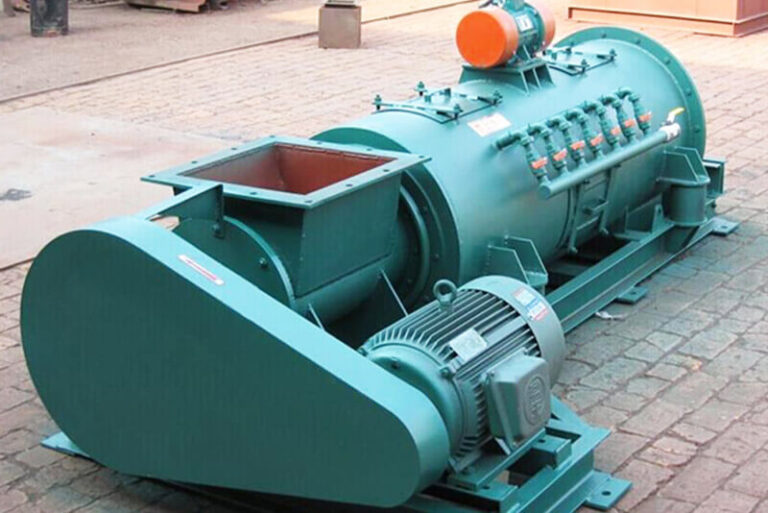

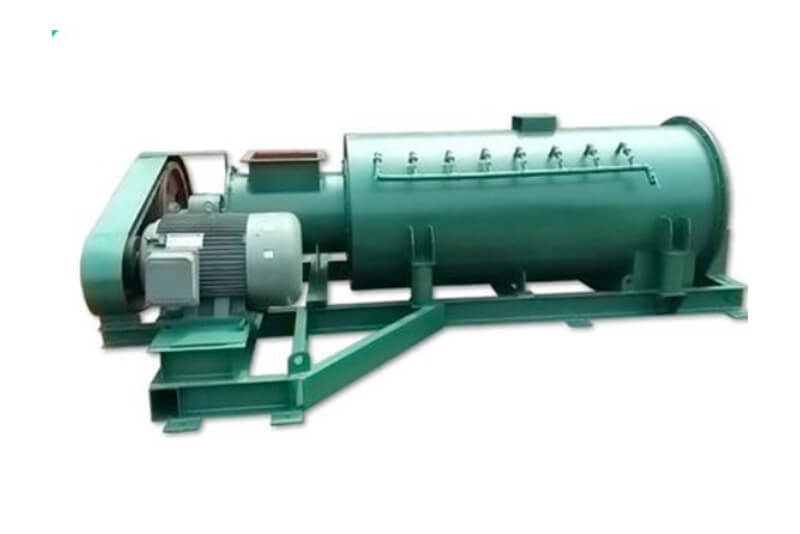

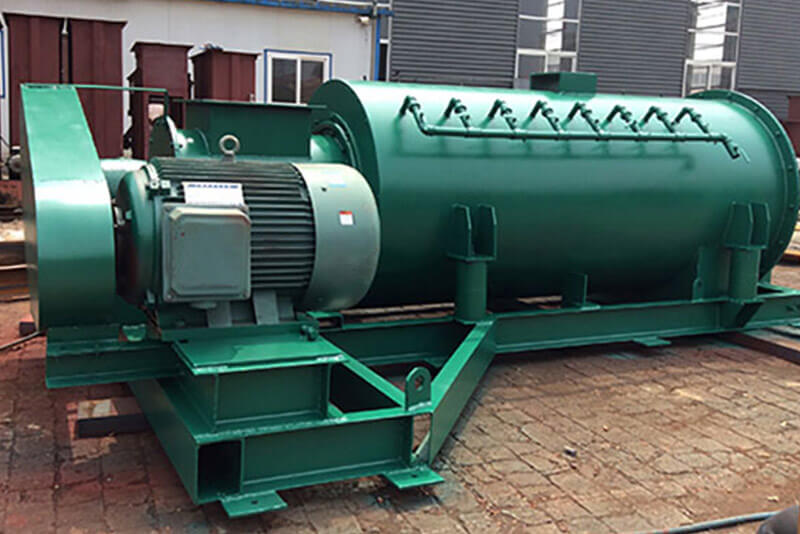

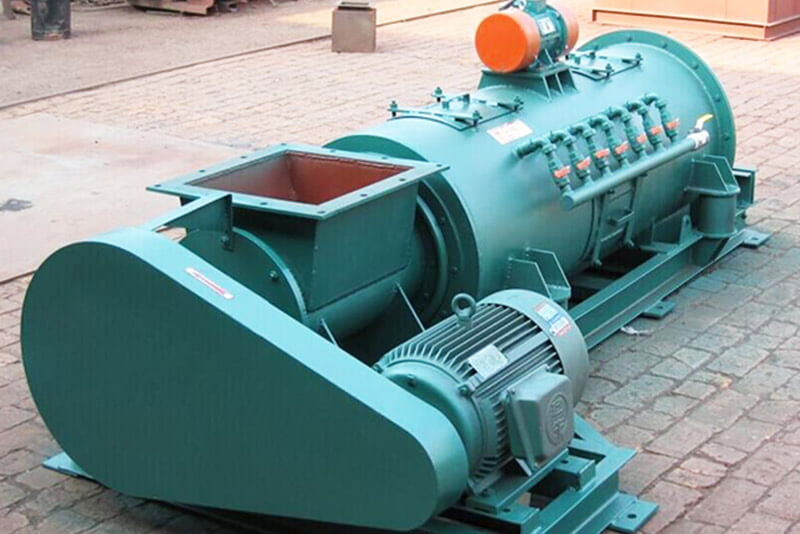

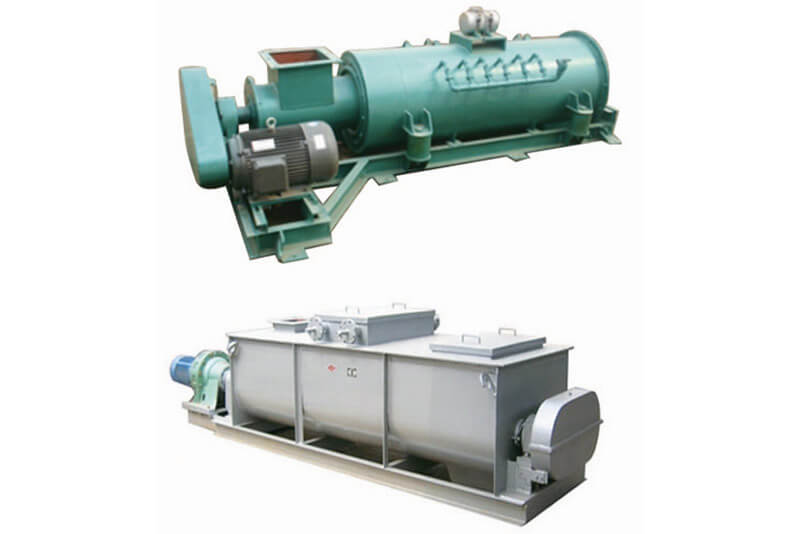

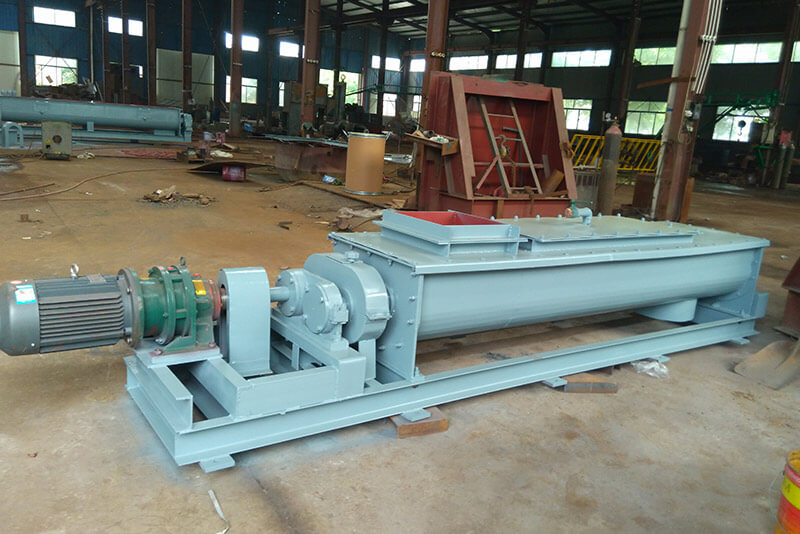

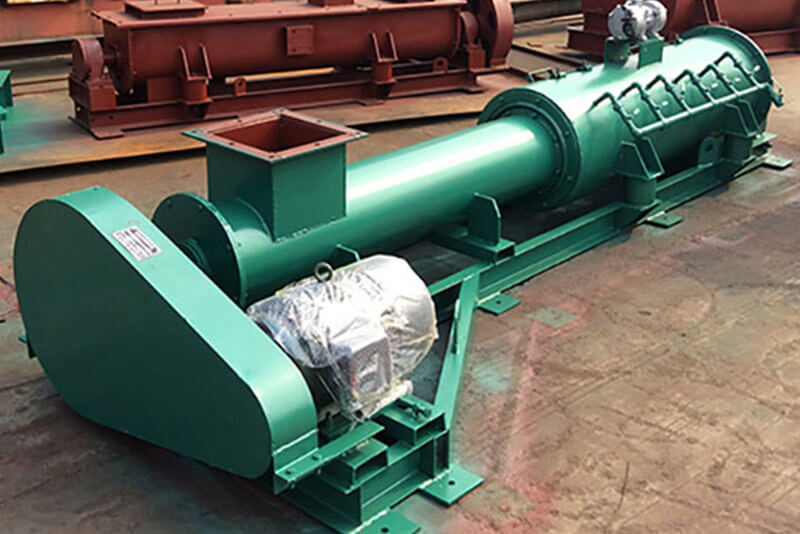

The single (double) shaft humidification mixer uses the synchronous rotation of the spiral shaft to transport dry ash and other powdery materials while adding water and stirring, and evenly humidifies the dry ash powdery materials, so that the dry ash materials do not emit dry ash and do not seep water. This makes it easier to load and transport humidified ash or transfer it to other conveying equipment.
Product Advantages
01.
Humidify evenly, without water seepage or dry ash;
02.
Good sealing performance, environmental protection and energy saving;
03.
Easy to operate and high reliability.
Application Scope
The dust humidification mixer is mainly suitable for humidifying and loading of fly ash-like materials in thermal power plants, mines and other industries.
Main Technical Specifications
| Model | Capacity (t/h) | Motor Power/kw | Feeder Power/kw | Vibration Motor Power/kw | Transport Temperature/°C | Pressure/mp |
| DSZ-50 | 15 | 7.5 | 1.1 | 0.4 | ≤300 | ≥0.2 |
| DSZ-60 | 30 | 11 | 1.5 | 0.75 | ≤300 | ≥0.2 |
| DSZ-80 | 60 | 18.5 | 1.5 | 2 | ≤300 | ≥0.2 |
| DSZ-100 | 100 | 37 | 2.2 | 2.5 | ≤300 | ≥0.2 |
| SJ10 | SJ20 | SJ40 | SJ60 | SJ80 | SJ100 | SJ200 | |
| Capacity | 10 | 20 | 40 | 60 | 80 | 100 | 200 |
| Blade Speed | 37.5 | 47.6 | 47.6 | 47.6 | 53 | 47.6 | 47.6 |
| Blade Diameter | 400 | 400 | 500 | 600 | 600 | 700 | 860 |
| Motor Model | Y132S | U132M | Y160M | Y160M | Y180M | Y250M | Y225M |
| -4 | 14 | 14 | 4 | -4 | -4 | -4 | |
| Motor Power | 5.5 | 7.5 | 11 | 15 | 185 | 37 | 45 |
