Product Introduction

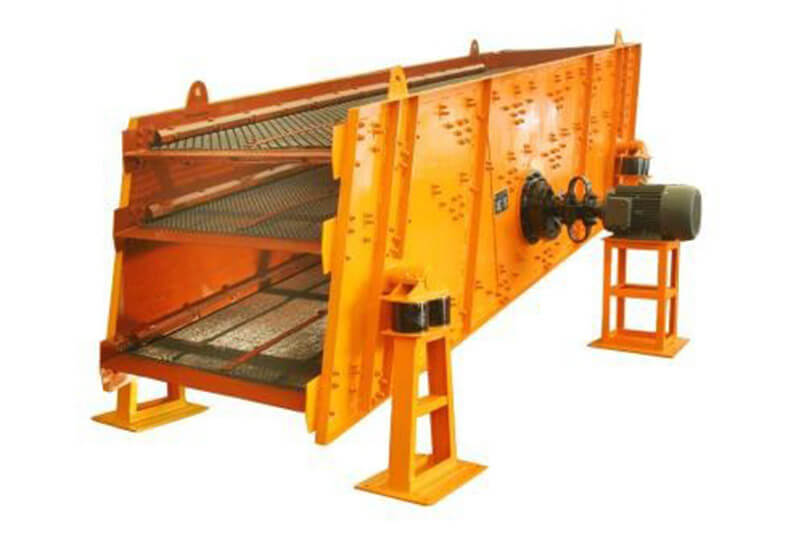

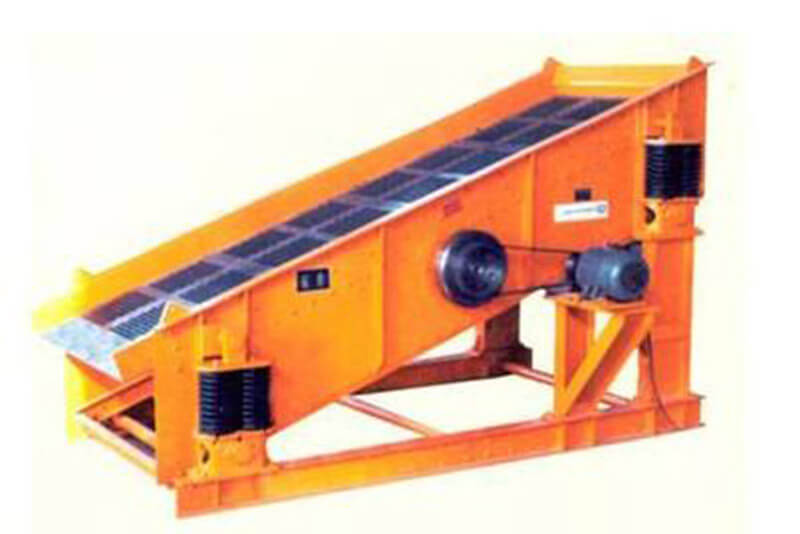

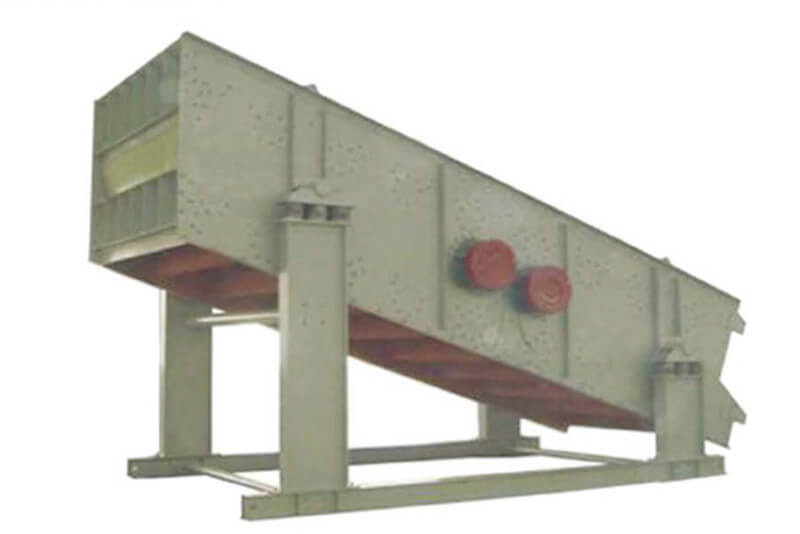

The vibrating screen consists of a screen box, a vibrator, a spring shock absorber and a support. Consists of chassis, etc. The screen box is connected with advanced ring-groove rivets to form a frame structure. The vibrator adopts eccentric block type. The spring shock absorber uses steel coil springs.
Product Advantages
01.
Ring groove rivet connection, advanced structure, strong and durable;
02.
Adopt tire coupling, flexible connection, smooth operation;
03.
Simple structure, convenient maintenance;
04.
The eccentric block is used as the excitation force, which has strong excitation force, low power consumption and low noise.
Application Scope
YA circular vibrating screen is mainly used for industries such as coal, metallurgy, mining, power generation, building materials industry, water conservancy projects, light industry and chemical industry. A high-efficiency screening equipment for classifying bulk materials such as coal, ore, and coke.
Main Technical Specifications
Model | Screen | Vibration Frequency(r/min) | Capacity(t/h) | Power/kw | ||
Layers No. | Square/m2 | Sieve Hole Size/mm | ||||
YA1848 | 1 | 7.5 | 6-50 | ≤200 | 150-525 | 15 |
2YA1848 | 2 | 7.5 | 6-50 | ≤200 | 150-525 | 15 |
YAH1848 | 1 | 7.5 | 30-150 | ≤50 | 250-1000 | 13 |
2YAH1848 | 2 | 7.5 | 30-150 | ≤400 | 250-1000 | 15 |
YA2148 | 1 | 10 | 6-50 | ≤210 | 180-630 | 18.5 |
2YA2148 | 2 | 10 | 6-50 | ≤210 | 180-630 | 22 |
YAH2148 | 1 | 10 | 13-200 | ≤400 | 270-1200 | 18.5 |
2YAH2148 | 2 | 10 | 30-150 | ≤400 | 270-1200 | 22 |
YA2160 | 1 | 12 | 3-80 | ≤200 | 230-800 | 18.5 |
2YAH2160 | 2 | 12 | ≤200 | 230-800 | 22 | |
YAH2160 | 1 | 12 | 30-150 | ≤400 | 350-1500 | 30 |
2YAH2160 | 2 | 12 | 30-150 | ≤400 | 350-450 | 30 |
YAH2448 | 1 | 11 | 6-50 | ≤200 | 200-700 | 18.5 |
2YAH2448 | 2 | 11 | 6-50 | ≤400 | 310-1300 | 30 |
YA2460 | 1 | 11 | 30-150 | ≤400 | 310-1300 | 30 |
2YA2460 | 2 | 14 | 6-50 | ≤200 | 260-780 | 30 |
2YA2460 | 1 | 14 | 6-50 | ≤200 | 260-780 | 30 |
YAH2460 | 2 | 14 | 30-150 | ≤400 | 400-1700 | 30 |
2YAH2460 | 14 | 30-150 | ≤400 | 400-1700 | 30 |
