Product Introduction

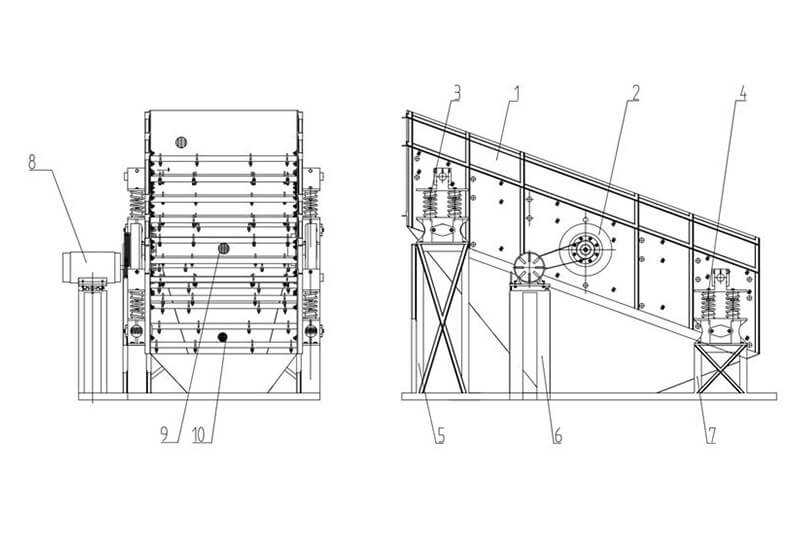

The motor passes through the tire coupling. Drive the vibrator so that the eccentric block of the vibrator rotates rapidly to generate exciting force. The screen box is continuously vibrated, and the materials are continuously projected on the inclined screen surface along with the screen box; when thrown up, they are stratified, and when they fall in contact with the screen surface, the particles pass through the screen, completing the grading process of particles over and over again.
Product Advantages
01.
Using block eccentricity as the excitation force, the excitation force is stronger.
02.
The screen beam and screen box are connected by high-strength bolts without welding.
03.
The screen machine has a simple structure and is easier to maintain.
04.
Adopt tire coupling, flexible connection and smooth operation.
Application Scope
YK circular vibrating screen is mainly used for dehydration, demediation, desliming and other operations of clean coal, medium coal and gangue in coal preparation plants. It is also used for wet or dry classification of fine-grained minerals after crushing and grinding in mineral processing plants. Ore cleaning, dehydration, desludging, desliming and other operations. Suitable for coal, metallurgy, mining, power generation, building materials industry, water conservancy projects, light industry and chemical industry.
Main Technical Specifications
| Model | Screen Layer No. | Screen Area(m2) | Vibration Frequency(r/min) | Double Amplitude(mm) | Capacity (m3/h) | Motor Power |
| 2YK1224 | 2 | 2.88 | 970 | 6-8 | 20-120 | 5.5 |
| YK1235 | 1 | 4.2 | 970 | 6-8 | 20-150 | 5.5 |
| 2YK1235 | 2 | 4.2 | 970 | 6-8 | 20-150 | 7.5 |
| 3YK1235 | 3 | 4.2 | 970 | 6-8 | 20-150 | 7.5 |
| 4YK1235 | 4 | 4.2 | 970 | 6-8 | 20-150 | 11 |
| YK1545 | 1 | 6.75 | 970 | 6-8 | 20-150 | 11 |
| 2YK1545 | 2 | 6.75 | 970 | 6-8 | 20-150 | 15 |
| 3YK1545 | 3 | 6.75 | 970 | 6-8 | 20-150 | 15 |
| 4YK1545 | 4 | 6.75 | 970 | 6-8 | 20-150 | 18.5 |
| YK1548 | 1 | 7.2 | 970 | 6-8 | 20-150 | 11 |
| 2YK1548 | 2 | 7.2 | 970 | 6-8 | 20-150 | 15 |
| 3YK1548 | 3 | 7.2 | 970 | 6-8 | 20-150 | 15 |
| 4YK1548 | 4 | 7.2 | 970 | 6-8 | 20-150 | 18.5 |
| YK1860 | 1 | 10.8 | 970 | 6-8 | 32-350 | 15 |
| 2YK1860 | 2 | 10.8 | 970 | 6-8 | 32-350 | 18.5 |
| 3YK1860 | 3 | 10.8 | 970 | 6-8 | 32-350 | 18.5 |
| 4YK1860 | 4 | 10.8 | 6-8 | 32-350 | 22 | |
| YK2160 | 1 | 12.6 | 6-8 | 66-720 | 18.5 | |
| 2YK2160 | 2 | 12.6 | 6-8 | 66-720 | 22 | |
| 3YK2160 | 3 | 12.6 | 6-8 | 66-720 | 30 | |
| 4YK2160 | 4 | 12.6 | 6-8 | 66-720 | 30 | |
| YK2460 | 1 | 14.4 | 6-8 | 75-750 | 18.5 | |
| 2YK2460 | 2 | 14.4 | 6-8 | 75-750 | 30 | |
| 3YK2460 | 3 | 14.4 | 6-8 | 75-750 | 30 | |
| 4YK2460 | 4 | 14.4 | 6-8 | 75-750 | 30 | |
| 2YK2475 | 2 | 18 | 6-8 | 120-900 | 30 |
